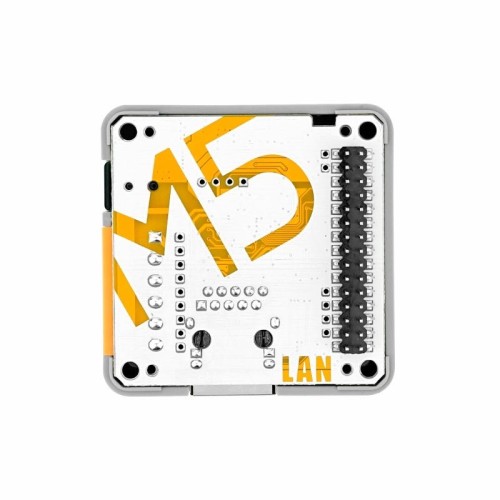

LAN Module with W5500 V12 - Unit expansion module for M5Stack development modules

Brand: M5Stack
Product Code: AN-20773
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-11
49.10€
Ex Tax: 40.58€

Qty

The LAN module is an Ethernet controller base, built-in W5500 full hardware Ethernet TCP/IP controller (SPI communication interface). It supports multiple communication protocols (TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE, etc.) and an integrated memory buffer area to facilitate Ethernet data packet processing. The internal expansion pad can be used to expand the RS485/RS232 communication switch module or to create custom designs, standard fixed buses, etc. The accessory and LAN module allows for expansion of the Ethernet connection.

Main features:
  • Can meet the requirements for wired network access in a real production environment
  • Designed for industrial application scenarios:
  • Features metal slide rails for easy installation and mounting
  • Equipped with HT3.96 terminals for electrical connection
  • Input supply voltage: from 9 V to 24 V
  • Standard configuration TTL-RS485 + TTL-RS232 two adaptor cards, suitable for different communication interfaces
Specification:
  • W5500 Ethernet Controller

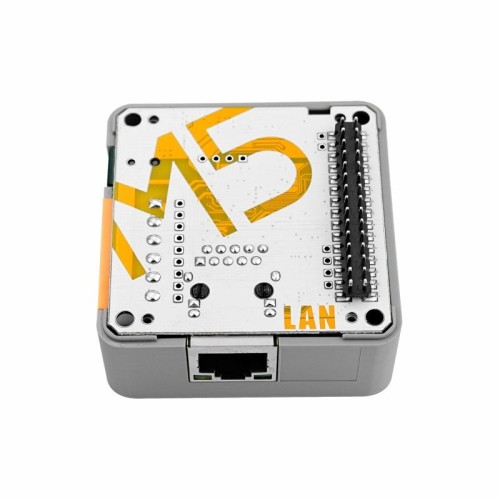

  • Network port: adaptive RJ45 10/100M network port
  • Module dimensions: 54 x 54 x 28 mm
  • Package Dimensions: 105 x 65 x 28 mm
  • Net Weight: 32 g
  • Gross weight: 132 g

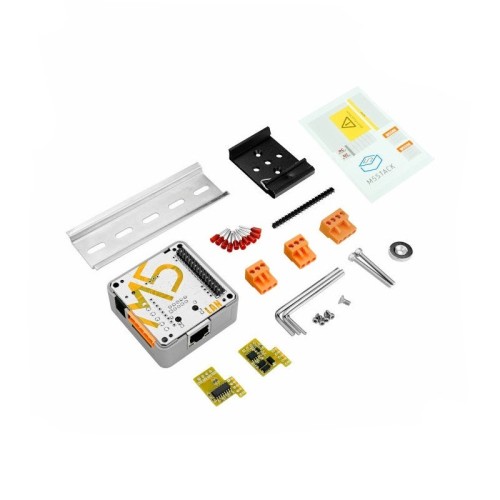

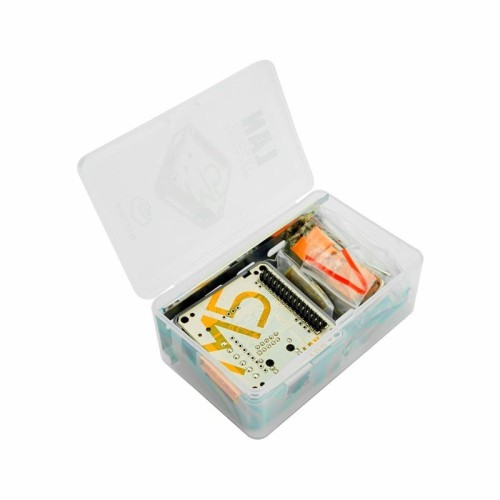

Set includes:
  • 1 x LAN module
  • 1 x TTL-RS485 adapter board
  • 1 x TTL-RS232 adapter board
  • 1 x 20 pin strip
  • 1 x metal rail and disk
  • 3 x HT3.96 terminal
  • 2 x 3 pin
  • 1 x 4 pin
  • 10 x insulated tube end
  • 3 x Allen wrench
  • 1 x 1.5 mm
  • 1 x 2 mm
  • 1 x 2.5 mm
  • 2 x Allen screw M3x28
  • 4 x hexagon socket self-tapping screws KA2x4
  • 1 x countersunk screw M3x8
