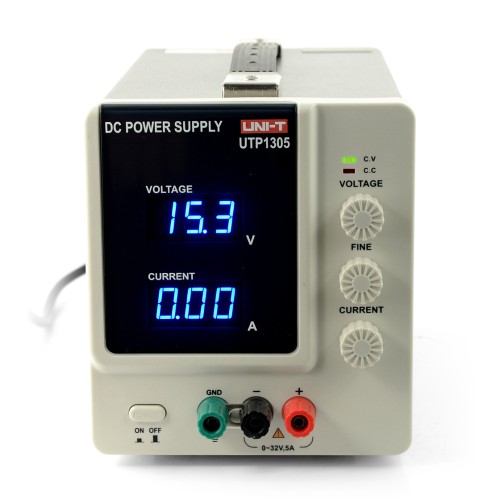

Laboratory power supply UNI-T UTP1305 32V 5A

Brand: UNI-T
Product Code: MIE0280
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-05-09
148.10€
Ex Tax: 122.40€

Qty

UTP1305 is a laboratory power supply with continuously adjustable voltage in the range from 0 to 32 V and current range from 0 to 5 A. the Power source can be used by hobbyists, electronics enthusiasts, as well as when working in laboratories, service workshops. Equipped with two LED displays seven-segment luminous in blue. Has overload protection and voltage.


Functions:

  •     The device can operate in the following modes:
  •         C. V. - DC output voltage
  •         C. C. - DC load
  •     The system is equipped with protection from surges and overloads
  •     Rules:
  •         Stepless adjustment of voltage in a wide range
  •         Stepless current adjustment throughout the range


Specification:

  •     Voltage range: 0 - 32 V
  •     Current range: 0 - 5 A
  •     Resolution of readings:
  •         Voltage: 100 mV
  •         Current: 10 mA
  •     Adaptation for continuous operation
  •     Display: blue LED
  •     Dimensions: 145 x 174,7 x 283,5 mm
  •     Weight: approx. 5.6 kg


Includes:
Laboratory power supply unit UTP3313TFL
Power cable
The user manual
