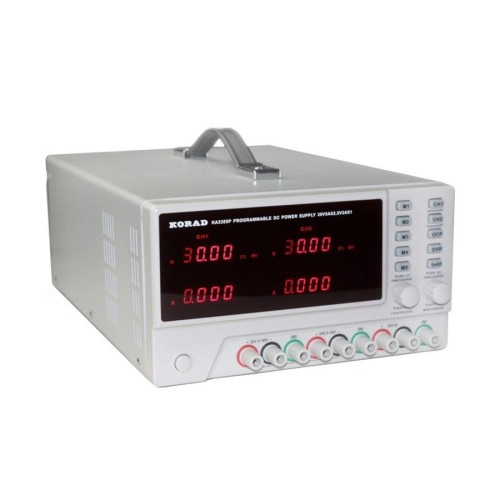

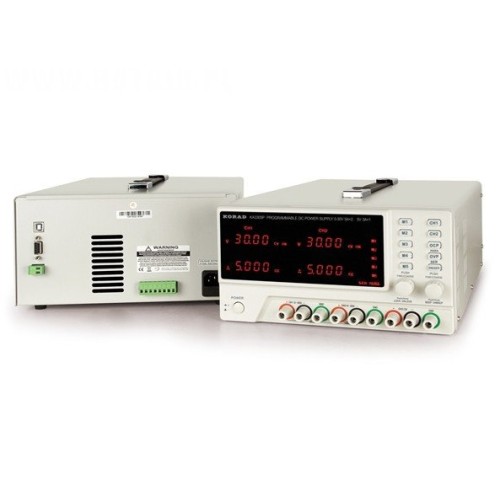

Laboratory power supply triple Korad KA3305P 2x30V/5A+5V/3A - communication with PC

Brand: Korad
Product Code: AN-16672
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
312.30€
Ex Tax: 258.10€

Qty

Triple-stabilized laboratory power supply with programmable memory. It allows for smooth adjustment of voltage from 0 V to 30 V and current from 0 A to 5 A. KA3305P has a large LED display that provides real-time information about the current-voltage and load. The power supply can operate in a constant output voltage (C.V.) and a constant load current (C.C.) mode.

Specification:
  • Manufacturer: Coradium
  • Voltage range: 2x from 0 V to 30 V
  • The intensity range: 2x from 0 A to 5 A
  • Independent channel: 5 V / 3 A
  • Power: 300 W
  • Load adjustment:
    • Voltage: ≤ 0.01% + 5 mV
  • Accuracy of parameter setting:
    • Tensions: 10 mV
    • The intensity: 1 mA
  • Output voltage ripple:
    • Tension: ≤ 2 mVrms
    • The intensity: ≤ 3 mArms
  • Response time:
    • Voltage build-up: ≤ 100 ms (rated load 10%)
    • Voltage drop: ≤ 100 ms (rated load 10%)
  • Channel 3:
    • Voltage 5 V
    • Current 3 A
  • Dimensions: 38 x 25 x 14 cm

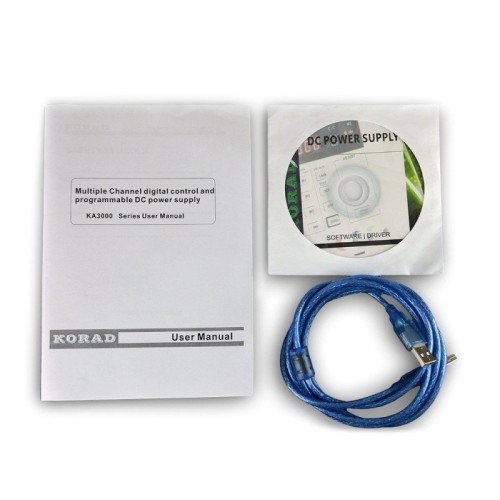

Set includes:
  • Laboratory power supply Korad KA3305P
  • Power supply cable
  • 2x Connection cable (2 cores)
  • USB cable
  • Operating instructions
