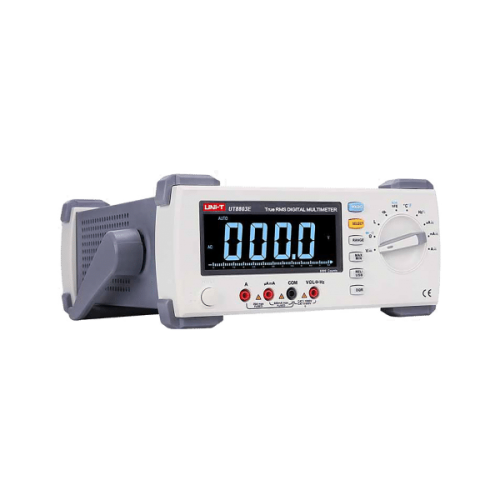

Laboratory multimeter Uni-T UT8803E

The laboratory multimeter Uni-T UT8803E allows you to make accurate measurements and has many advanced measurement functions.

MEASUREMENT RANGES:

• DC voltage: 600mV / 6V / 60V / 600V / 1000V ± (0.3% + 2)
• AC voltage: 600mV / 6V / 60V / 600V / 750V ± (0.6% + 5)
• Direct current: 600µA / 6mA / 60mA / 600mA / 10A ± (0.8% + 3)
• Alternating current: 600 µA / 6 mA / 60 mA / 600 mA / 10A ± (1% + 5)
• Resistance: 600 ohms / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm ± (0.8% + 5)
• Capacity: 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF ± (1.5% + 5)
• Inductance: 600 µH / 6 mH / 60 mH / 600 mH / 6 H / 60 H / 100 H (2% + 5)
• Frequency: 600 Hz / 6 kHz / 60 kHz / 600 kHz / 6 MHz / 20 MHz ± (0.1% + 10)
• Fill rate: 5% ~ 95%
• Temperature: -40? ~ 1000? ± (1% + 5); -40? ~ 1832? ± (1% + 9)
• Diode test
• Continuity check
• Test of HFE transistors
• SCR thyristor test

Additional features:

• Automatic / manual change of measuring ranges
• Real RMS
• Inductance DQR measurement
• The last reading is frozen
• Horn
• MAX / MIN value entry
• Measurement of relative value
• Screen backlight (adjustment)

FEATURES:

• USB connection
• Power supply: 100V / 120V / 220V / 240V ± 10%, 47Hz ~ 63Hz
• Screen: EBTN LCD
• Dimensions: 265x110x320mm
• Weight: 3.09kg

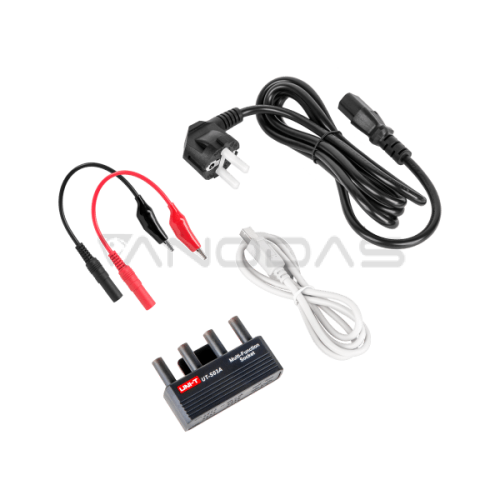

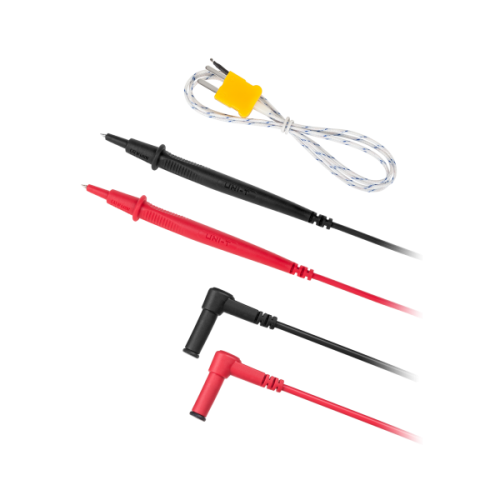

• Included: test leads, short test leads with alligator clips, power cord, USB cable, temperature probe, measuring accessory
