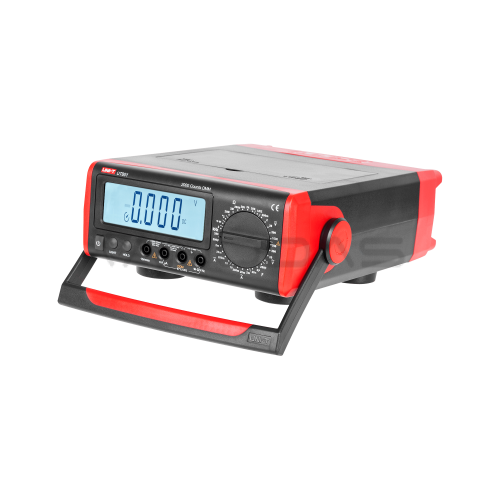

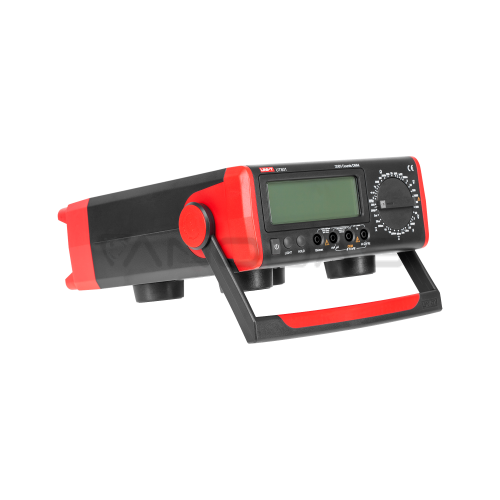

Laboratory multimeter Uni-T UT801

Brand: UNI-T
Product Code: MIE0145
Availability: 4-6 business days
Planuojama gavimo data po uĹľsakymo: 2025-05-07
114.90€
Ex Tax: 94.96€

Qty

The laboratory multimeter Uni-T UT801, which allows you to make accurate measurements, has many advanced measuring functions.
Technical data:

  • DC voltage: 200mV / 2V / 20V / 200V / 1000V ± (0.5% + 2)
  • AC voltage: 2V / 20V / 200V / 750V ± (0.8% + 3)
  • Direct current: 200 µA / 2 mA / 20 mA / 200 mA / 10 A ± (0.8% + 2)
  • Alternating current: 2 mA / 20 mA / 200 mA / 10 A ± (1% + 3)
  • Resistance: 200 ohms / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm ± (0.8% + 3)
  • Capacity: 20 nF / 2 µF / 200 mF ± (4% + 3)
  • Frequency: 2kHz / 200kHz ± (1.5% + 5)
  • Temperature: -40 ° C ~ 1000 ° C; ± (1.2% + 3)
  • Diode test
  • Continuity check
  • Checking the hFE of transistors
  • Manual change of measuring ranges
  • Low battery indicator
  • The last measurement is recorded
  • Backlit LCD screen
  • Maximum reading: 2000
  • Voltage measuring input resistance: about 10 MOhm
  • Power supply: AC 220 V / 50 Hz or 6x 1.5 V (R14)
  • Screen: 108 x 34.5 mm
  • Dimensions: 300 x 245 x 105 mm
  • Weight: 1.65 g

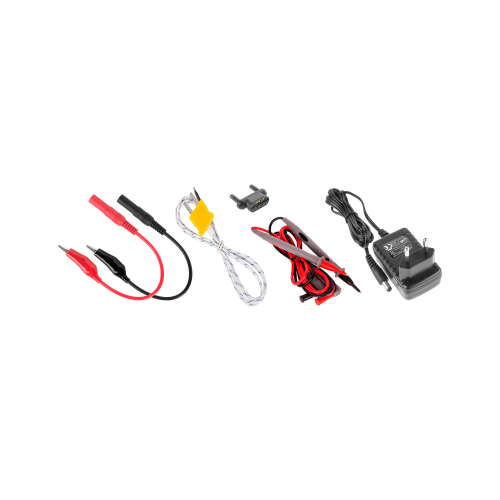

Included:

  • Test leads
  • Short wires with crocodile clamps
  • Temperature measuring probe
  • Test socket
  • Network adapter
