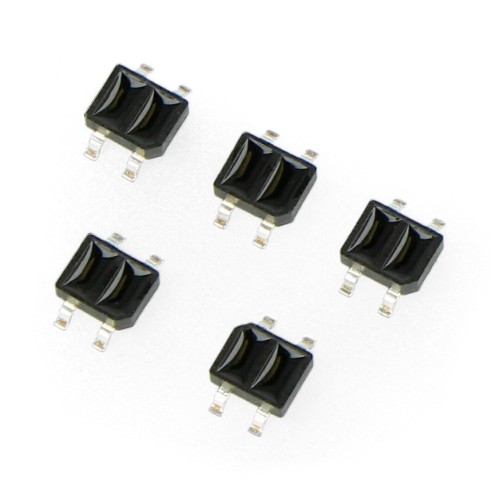

KTIR0711S reflective optocoupler sensor - 5 pcs
Brand: Farnell
Product Code: AN-00053
Availability: 4-6 business days
Planned delivery date after ordering: 2024-11-12
Product Code: AN-00053
Availability: 4-6 business days
Planned delivery date after ordering: 2024-11-12
Ex Tax: 11.24€

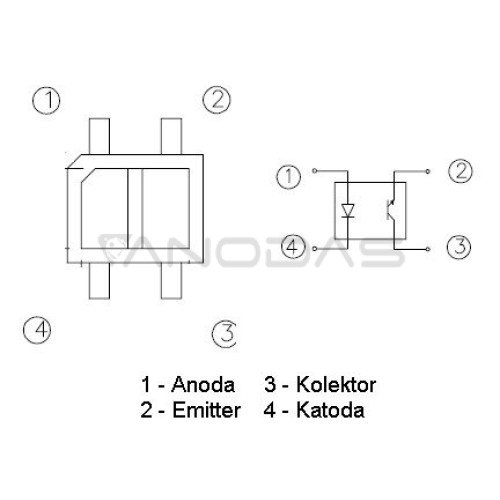

A reflective optocoupler can be used, for example, to distinguish the edges. The system is closed in a small, surface soldered case with dimensions: 2.7 x 3.4 mm. Items are sold in sets of 5 pieces.
The sensor sends a beam of radiation through the IR transmitter, then measures the intensity of the light reflected through the phototransistor. The output is a voltage signal dependent on the light intensity falling on the detector. The more light will be reflected and get to the photodetector, the higher will be the output voltage. As the light is reflected better by the bright surface (dark surface absorbs it), the voltage will be higher on white material.

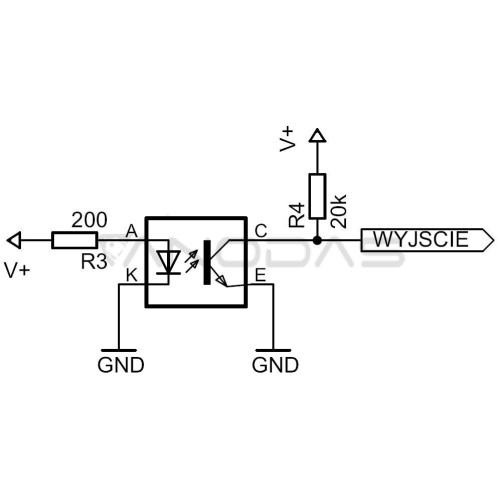

The sensors are readily used by designers of Line Follower robots to detect lines, as well as in the mini-sumo construction where it is used to detect the edges of the ring. As, in these cases, detected are the extreme values (to distinguish black from white - intermediate values are not important), the sensor can be located higher above the surface than the documentation indicates. From our experience, we can tell that with an appropriate selection of resistors, sensors correctly distinguish the black insulating tape from the white background from a distance of about 0,5 cm.
The advantage of the sensor is its small size and lightweight. It lacks, however, the protective case (which can be found in the CNY70 sensor) so when it is maximally close to the surface, it is not working properly. Therefore, you should take care of the appropriate setting of this parameter.
Specification:
The sensor sends a beam of radiation through the IR transmitter, then measures the intensity of the light reflected through the phototransistor. The output is a voltage signal dependent on the light intensity falling on the detector. The more light will be reflected and get to the photodetector, the higher will be the output voltage. As the light is reflected better by the bright surface (dark surface absorbs it), the voltage will be higher on white material.
The sensors are readily used by designers of Line Follower robots to detect lines, as well as in the mini-sumo construction where it is used to detect the edges of the ring. As, in these cases, detected are the extreme values (to distinguish black from white - intermediate values are not important), the sensor can be located higher above the surface than the documentation indicates. From our experience, we can tell that with an appropriate selection of resistors, sensors correctly distinguish the black insulating tape from the white background from a distance of about 0,5 cm.
The advantage of the sensor is its small size and lightweight. It lacks, however, the protective case (which can be found in the CNY70 sensor) so when it is maximally close to the surface, it is not working properly. Therefore, you should take care of the appropriate setting of this parameter.
Specification:
- The maximum voltage of the IR LED: 5 V
- The maximum current of the IR LED: 50 mA
- The maximum collector-emitter voltage: 30 V
- Maximum collector's current: 20 mA
- Case soldered on the surface (SMD)
