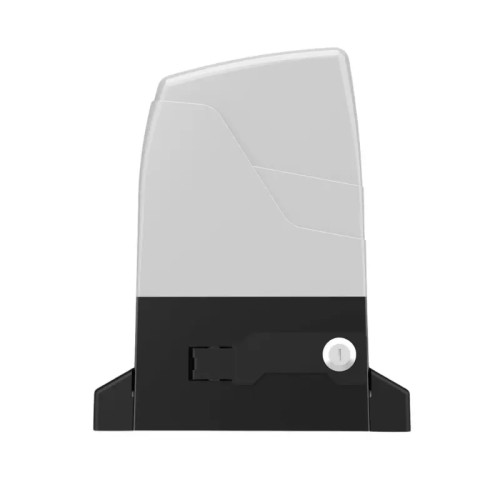

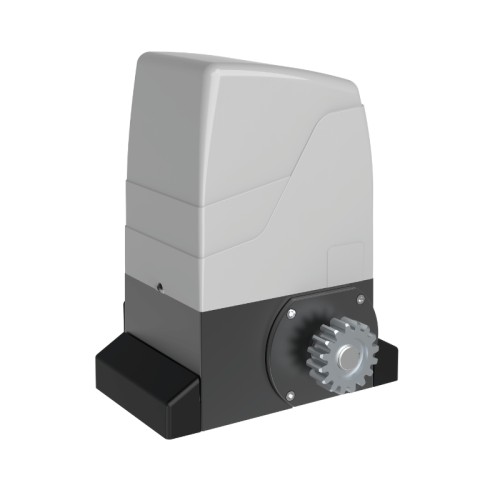

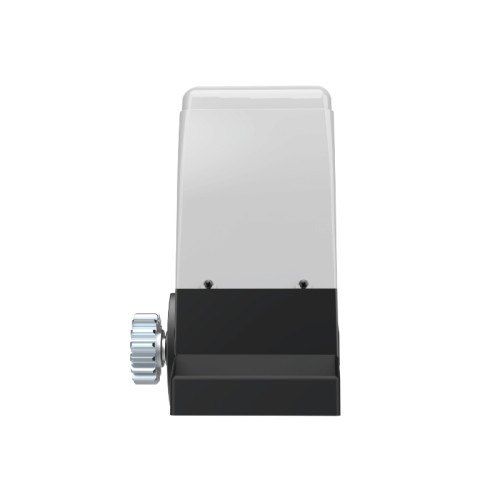

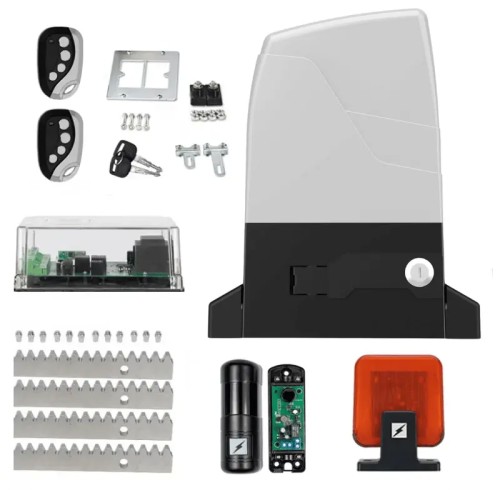

KSE380-DG sliding gate drive up to 2500KG

The new DG version of the KSE380 drive is a guarantee of comfort and reliability. The sliding gate operator KSE380-DG is equipped with an innovative, digital controller, which makes it even easier to configure the device. Another big change is the use of a three-phase brushless motor. The gate drive is characterized by a high load (up to 2500 kg), which allows you to automate even very heavy, long industrial gates. The KSE380-DG drive is also characterized by a very high travel speed: 18-20 m/min. This is especially important when the entrance to the property is from a busy road.

Features:

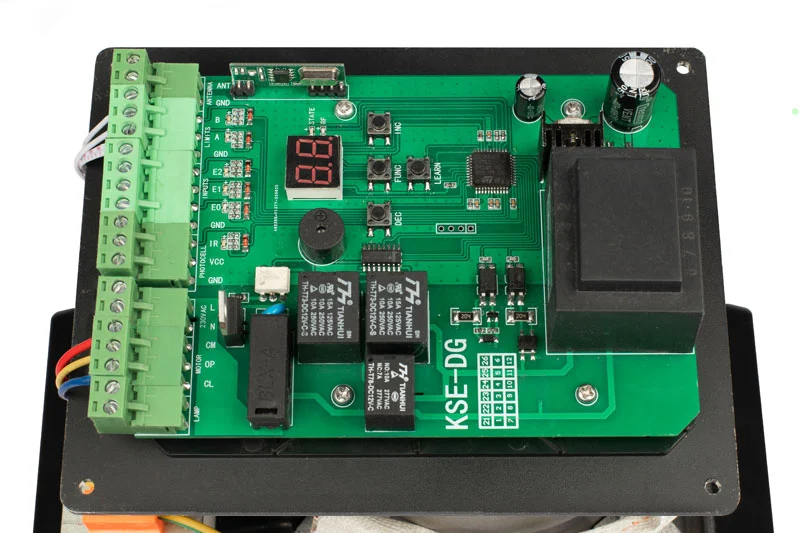

Safe and functional digital control board

Elektrobim engineers participated in the design of the new control board, so we are sure that it will meet the expectations of users. The digital display makes programming and configuring the machine much easier. The device provides access to a number of practical functions such as: gate function, automatic closing, soft start/stop and speed control. Additional connectors on the controller allow you to connect peripheral devices such as GSM modules, WiFi, coded keypads, video intercoms and manual control buttons. The drive is ideal for situations where there are many users (such as large companies) as up to 99 remote controls can be loaded into the control panel. Convenient control is possible up to a distance of 100 meters, and the distance is increased by an external antenna. In order to maximize the lifetime of the controller, it is additionally protected by a transparent case. As a result, he is not afraid of pests and moisture.

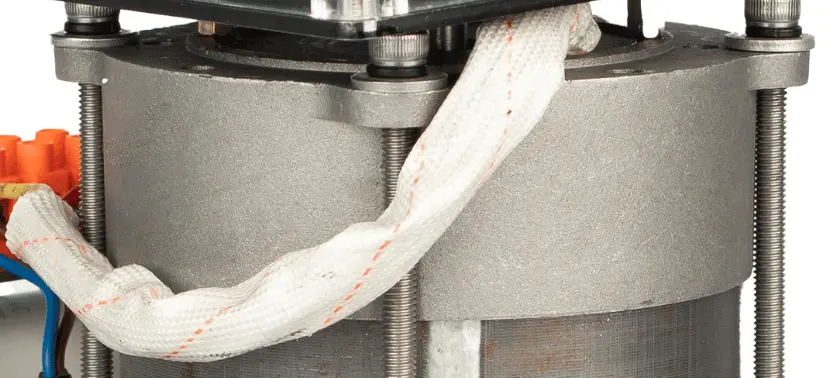

New three-phase motor

The three-phase brushless motor used in the KSE380-DG drive has a higher torque, which practically means extremely smooth and stable operation. This is especially important for large and heavy gates. Three-phase motors also have a lower starting current, which means they require less energy to start. This not only saves energy, but also reduces the load on the power grid. Three-phase motors are less susceptible to overheating and overload, making them more durable and less likely to fail. The drive is also characterized by a high working speed (20 m/min), thanks to which the automated gate will open very quickly.

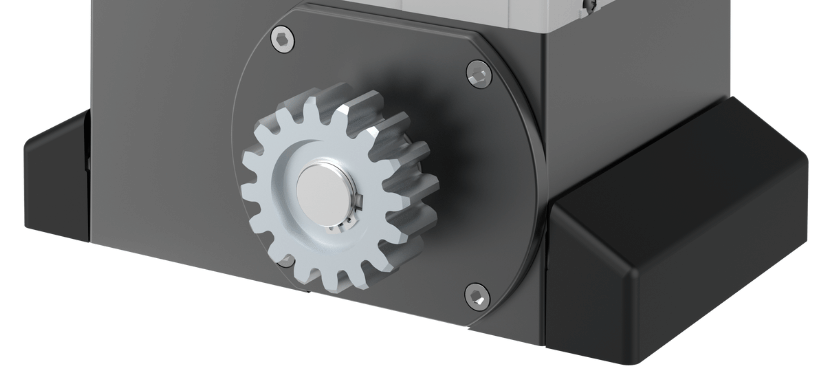

Strong and durable gate motor

The KSE380-DG sliding gate drive is synonymous with trouble-free operation thanks to its brushless induction motor. Due to the lack of traditional brushes, there is no need to change parts frequently, so the device is practically maintenance-free. Its 370W motor with durable gear ensures reliable starting even on the coldest winter nights. But that's not all. The KSE380-DG drive impresses with its safety - it is equipped with protection against crushing, overvoltage, optical, thermal and time protection, which guarantees safe use even with high drive force.

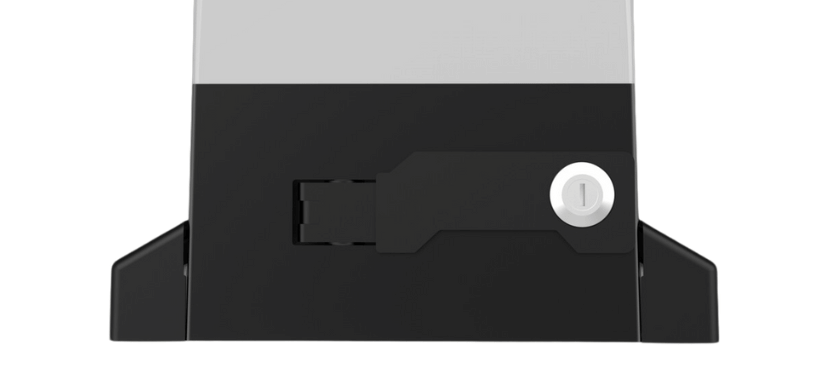

Do not worry about the lack of electricity in the network

The drive is equipped with an emergency drive release key. With it, you can easily disengage the drive and open the gate manually. Therefore, there is no need to worry that it will not be possible to leave or enter the property in the event of a power outage.

Specifications:

• Supply voltage: AC230V / 50HZ
• Main material: aluminum
• Energy consumption: 250W
• Torque: 62 Nm
• Maximum gate weight: 2500 kg
• Linear opening speed: 12-24m/min
• Gear rotation speed: 48 rpm
• Drive type: gear
• Max. gate length: 18m
• Remote control frequency: 433.92Mhz
• Max. remote control distance: 100m
• Max. number of pilots: 99
• Limit switches: magnetic
• Operating temperature: -30~+60 C
• Degree of protection: IP44
• Daily number of cycles: <240 (20/hour)
