Korad Laboratory power supply U203 0-30V 10A

Brand: Korad
Product Code: AN-24359
Availability: Vilnius Store In Stock
Kaunas Store Out of Stock
Central Warehouse Out of Stock
108.10€
Ex Tax: 89.34€

Qty

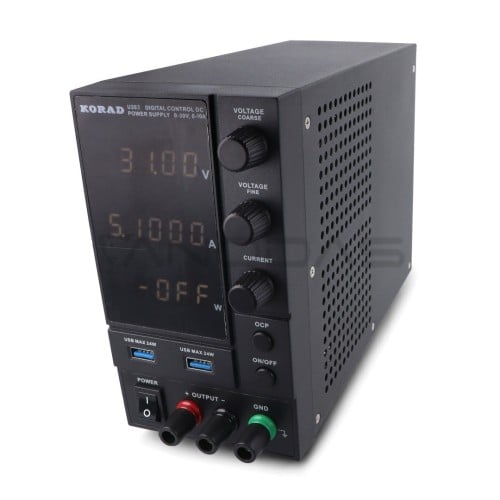

Laboratory power supply Korad U203 is a device that offers stable power supply for electronic devices with a voltage range from 0V to 30V and a current intensity from 0A to 10A. Precise adjustment of parameters is done using built-in knobs, and in addition, the power unit also has two 24W USB ports for fast charging of devices.

Specifications:
  • Voltage range: from 0V to 30V
  • Current range: from 0V to 10A
  • Parameter adjustment
  • Voltage: ≤0.01% + 2mV
  • Current: ≤0.1% + 5 mA
  • Parameter setting accuracy:
  • - Voltage: 10 mV
  • - Current: 1 mA
  • Setting accuracy:
  • - Voltage: ≤0.5% + 10 mV
  • - Current: ≤0.5% + 5 mA
  • Output voltage ripple:
  • - Voltage: ≤20mVrms
  • - Intensity: ≤10 mArms
  • Dimensions: 231x95x168mm
  • Weight: 2.5 kg

Features:
  • Smoothly adjusts voltage from 0V to 30V and current from 0A to 10A
  • Enables coarse voltage regulation in 1V steps and fine regulation in the range of 0.01V to 0.1V
  • Displays the current value with an accuracy of 0.1 mA
  • It has two 24W USB ports for fast charging of devices

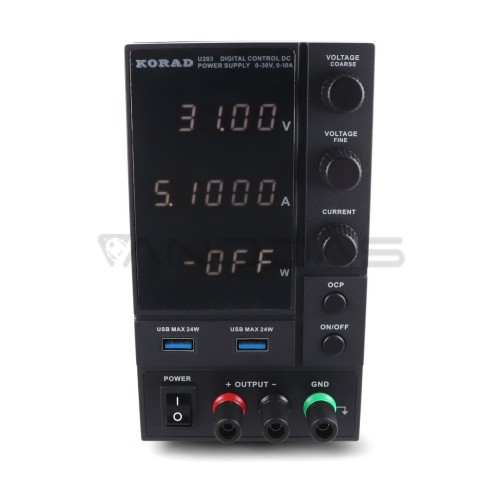

  • There is a built-in LED display that shows the current voltage, current and power values
  • It is equipped with protection against overload and overheating
  • When the device is turned off, it can remember the set parameter values
  • It has on/off and OCP output switches
