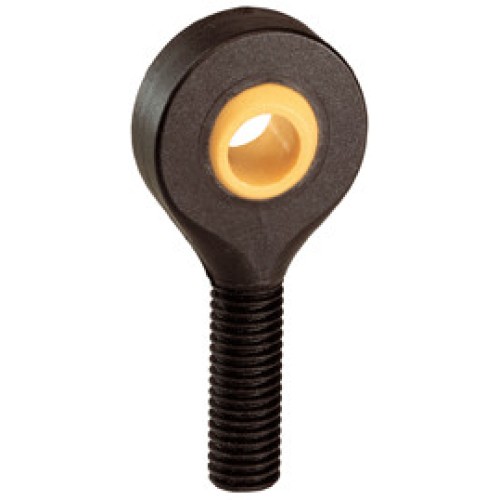

KARM-16 F MH joint head

Brand: Igus
Product Code: MX-KARM-16-F-MH
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-19
19.80€
Ex Tax: 16.36€

Qty

d%3%: M16x1.5
Material: Plastic
d1 [mm]: 16
d2 [mm]: 42
Designation: KARM-16 F MH
B [mm]: 21
Internal height h1 [mm]: 66
max. angle [°]: 23
Max. static load capacity short tensile [N]: 3900
Max. static load capacity for long tensile [N]: 1950
Max. lateral load short [N]: 800
Max. lateral load long [N]: 400
Minimum thread depth [mm]: 26
Max strength for turning the internal thread [Nm]: 17
Max. torque of the bearing head [Nm]: 110
Thread type: right
Design: Eye joints
L%2% [mm]: 88
L%1 %[mm]: 37
C1 [mm]: 15
Mounting: Threaded pin
Bearing: Plain bearing - shell
