Kailh Mechanical Four Key Tester strip - test set of mechanical keys - Adafruit 4973

Brand: Adafruit
Product Code: AN-22214
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-11
14.00€
Ex Tax: 11.57€

Qty

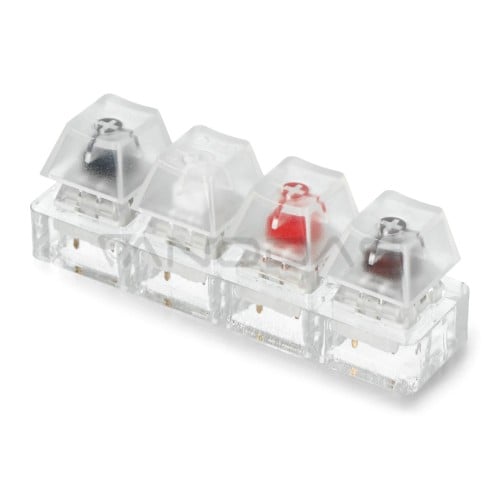

Kailh Mechanical Four Key Tester is a test strip that contains four Kailh Mechanical Key Switches of different types and colors. They are used in the implementation of a wide range of projects, e.g. in the construction of an original, non-standard mechanical keyboard. By placing several types of buttons on the strip, the user can familiarize himself with the available versions. These switches are compatible with Cherry MX and the pressing force needed to activate each switch does not exceed 60 gf. On the strip, there is 1x White Clicky button, 1x Brown Quiet button, 1x Red Linear button and 1x Black Linear button.

Specification:
  • Type:
    • Clicky button - white
    • Quiet button - brown
    • Linear button - red
    • Linear button - black
  • Maximum switching voltage: 12 V AC/DC
  • Maximum switching current: 10 mA AC/DC
  • Dielectric Strength: 500 V / 50 Hz
  • Lifespan: > 50 million actuations
  • Contact configuration: single-pole contact
  • Degree of protection: IP40
  • Standard lead spacing: 19.05 mm
  • Dimensions: 80.3 x 26 x 23.5 mm
