ISM330DHCX 6DoF IMU, 3-axis accelerometer and gyroscope, Adafruit 4502

The DoF ISM330DHCX sensor is equipped with a 3-axis accelerometer and a 3-axis gyroscope. It measures linear acceleration within ±2 / ±4 / ±8 / ±16 g at 1,6 Hz to 6,7 kHz and angular velocity within ±125 / ±250 / ±500 / ±1000 / ±2000 / ±4000 dps at 12,5 Hz to 6,7 kHz. These sensors are used in smartphones, tablets, and various video game controllers. It also has Qwiic connectors for simple connection. It communicates via I2C or SPI. Powered by 3 V or 5 V.

Specification:

• Supply voltage: 3 V to 5 V
• Communication: SPI / I2C
• Connectors: 2x Qwiic
• Accelerometer:
• 3 axes: X, Y, Z
• Scope: ±2 / ±4 / ±8 / ±16 g
• Frequency: 1.6 Hz to 6.7 kHz
• Gyroscope:
• 3 axes: X, Y, Z
• Scope: ±125 / ±250 / ±500 / ±1000 / ±2000 / ±4000 dps
• Frequency: 12.5 Hz to 6.7 kHz
• Operating temperature: -40 °C to 105 °C

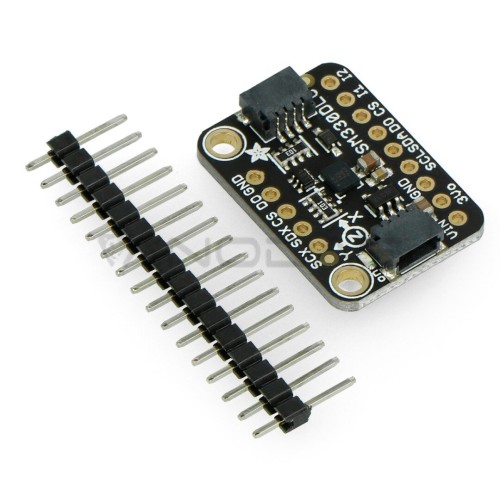

Set includes:

• Sensor board ISM330DHCX
• 2.54 mm goldpin raster strip for self-soldering


Useful links:
Manufacturer website
Manual
