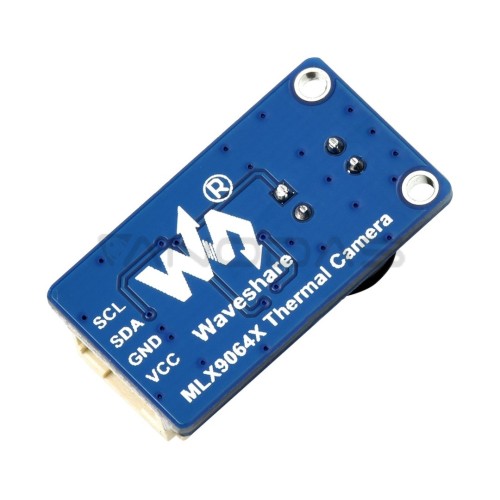

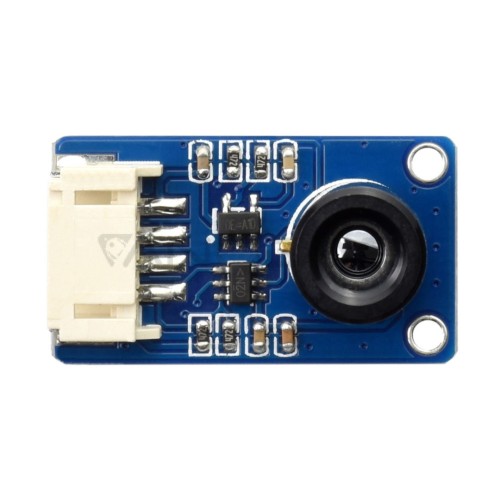

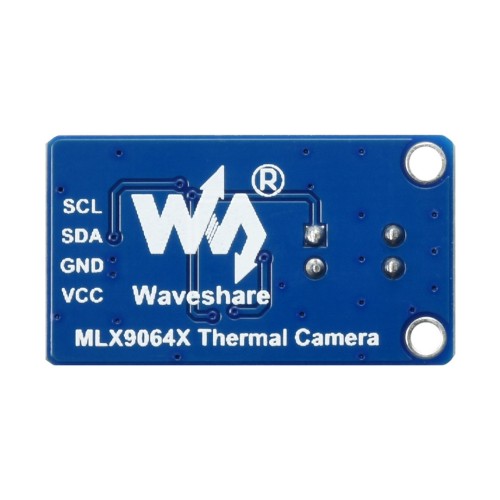

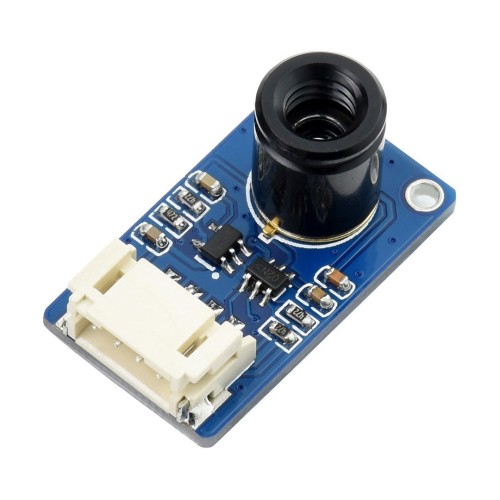

IR thermal imaging camera MLX90641 16×12px, 55 FOV - I2C - Waveshare 20465

Brand: Waveshare
Product Code: AN-20551
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
71.50€
Ex Tax: 59.09€

Qty

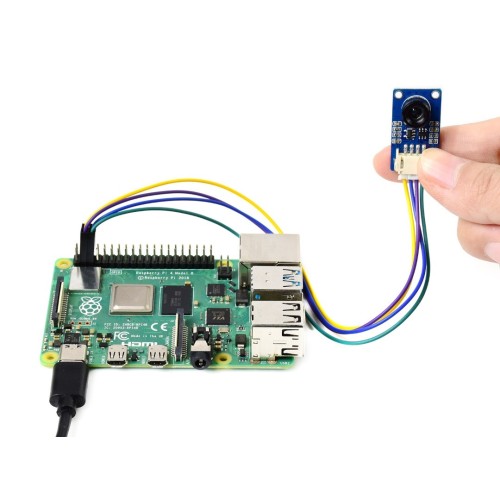

A thermal imaging camera module based on the MLX90641 chip with a resolution of 16x12px. It allows measuring the temperature of an object in the range from -40 °C to 300 °C with an accuracy of ± 2 °C. The module communicates with the microcontroller via the I2C interface. The FOV of the camera is 55°x35°. The camera is powered by 3.3 V or 5 V.

Specification:

  • Supply voltage: 3.3 V or 5 V
  • Field of view: 55°x35°
  • Interface: I2C
  • Measurement range: -40 °C to 300 °C
  • Current consumption: ~12 mA
  • Accuracy: ± 2 °C (ambient temp. 0 °C to 50 °C)
  • Refresh rate: from 0.5 Hz to 64 Hz
  • Operating temperature: from -40 °C to 125 °C
  • Dimensions: 25 x 16 mm
