IR beam interruption sensor - LED 3mm - 0-25cm

Product Code: AN-18687
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
5.30€
Ex Tax: 4.38€

Qty

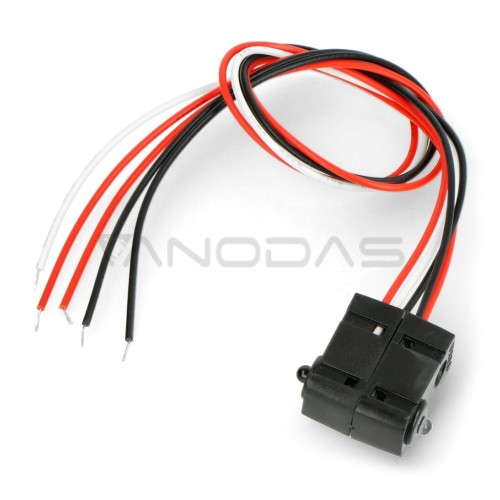

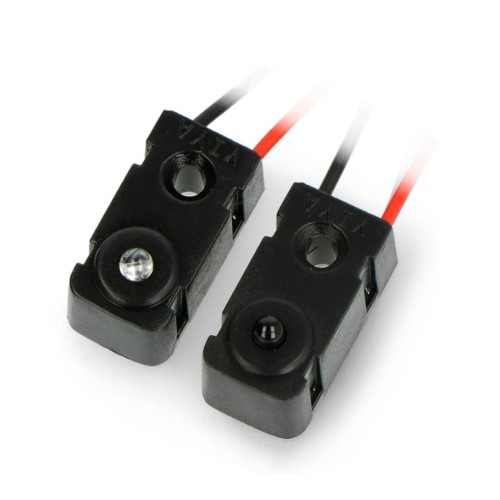

The sensor reacts to an interruption in the beam of infrared light that is transmitted between the transmitter and receiver. It has a detection range from 0 cm to 25 cm. When the beam is interrupted by another object, the receiver signals this event by lighting up. The module is equipped with a 3 mm IR LED with an illumination angle of 10°. Beam interruption systems are used e.g. in measuring gates.

Specification:
  • Supply voltage: 3.3 V to 5 V
  • Range: 0 cm to 25 cm
  • Diode: 3 mm IR LED
  • Illumination angle: 10°
  • Response time: up to 2ms
  • Output: open collector
