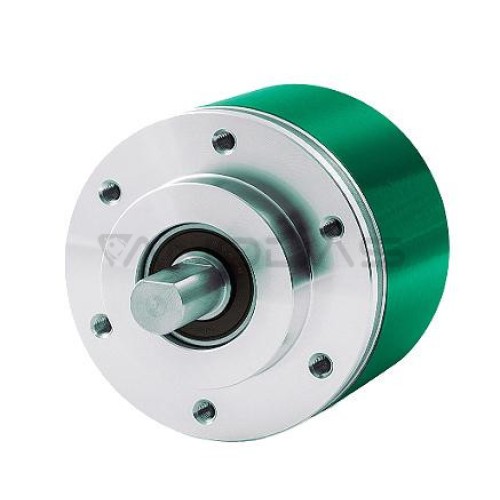

IQ58-H-PROG-ZCZ46R encoder + socket, programmable, PushPull/LineDriver, 5-30VDC, Lika
Ex Tax: 210.50€
The IQ58 series incremental encoder is a universal converter. which allows you to program the required resolution in the range of 1-16384 pulses/revolution. It is also possible to program the counting direction - CW or CCW. This model has differential outputs with an AB0/AB0 index signal.
Encoders from this series have universal outputs. which is compatible with the Push Pull and Line Driver standards.
At the customer's request, the encoder can be programmed in our company to the required resolution within the given range.
Technical data
- Housing diameter: 58mm
- Shaft diameter: 6mm (also possible 8. 9.52. 10. 12)
- Output cable: included
- Socket: yes
- Resolution: 1 - 16384 PPR max.
- Max. output frequency: 500kHz
- Power supply: 5-30VDC
- Output circuits: Universal (compatible with Push Pull. Line Driver)
- Temp. operating: -40°C +85°C (-40°F +185°F)
- Degree of protection: IP65
Type: incremental
Shaft diameter: 6mm
Operating voltage: 5-30V DC
Operating temperature °C: -10 to 70
Output type: Push-Pull/Line Driver
Cable length: 2m
Resolution: 1 - 16384 imp/rev
Shaft: solid
Channels: AB+/AB
Housing diameter: 58mm
