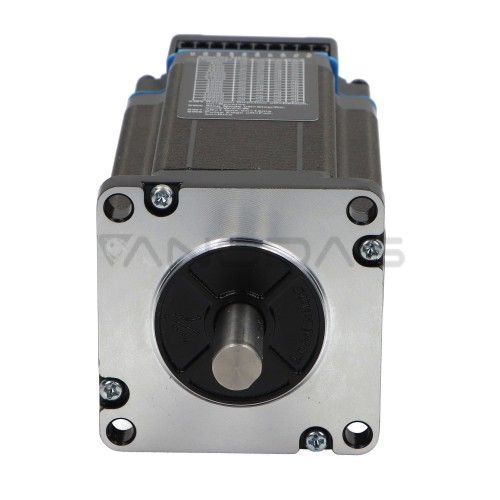

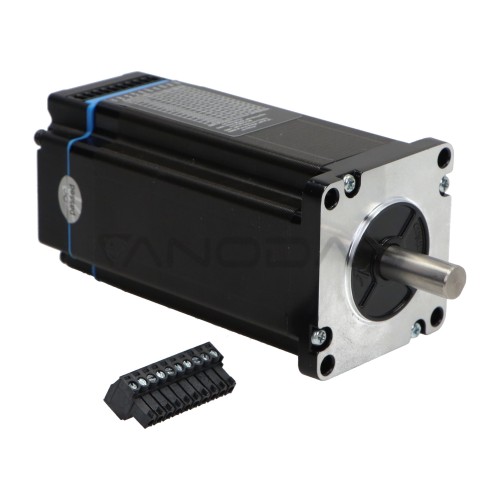

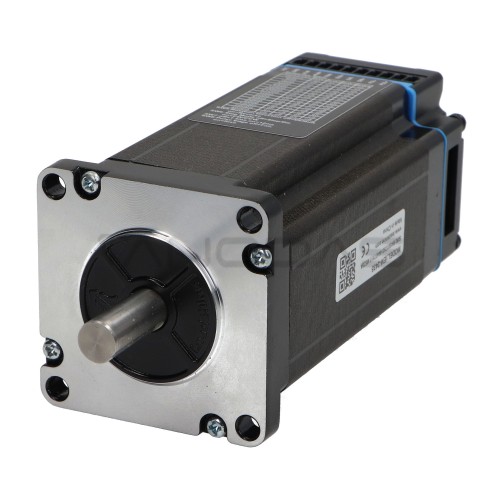

Integrated stepper motor iEM-2435 - 3.5Nm Leadshine

● NEMA24, 3.5Nm

● No tuning required for easy setup

● Smooth start without any "jumps" when switching on the power

● Low noise and vibration, smooth movement

● Control via Step&Direction or CW&CCW signals

● 3 digital inputs, 1 digital output with optical isolation

● RS232 communication for connection to Leadshine software

● Overvoltage and overload protection

The iEM-2435 is a unique NEMA24 motor that features 3.5N m of torque, making it ideal for applications requiring high driving force. However, its advantages do not end with power – this motor also offers exceptional ease of installation due to the lack of tuning. This means that even less experienced people can quickly and efficiently set up this motor, which means you can get started faster.

It is also worth highlighting the soft start function, which eliminates unwanted "jumps" when switching on the power, ensuring smooth and trouble-free start-up. Additionally, this engine is characterized by low noise and vibration levels, which makes the machine's operation not only efficient but also comfortable for users.

The iEM-2435 stepper motor is controlled by Step&Direction or CW&CCW signals, which gives users the flexibility to adapt the operation to their needs and requirements. Additionally, the presence of 3 digital inputs and 1 digital output with optical isolation provide versatility in integration with various control systems.

A key element of this engine is also the ability to communicate via RS232, which allows for easy connection to Leadshine software. This in turn facilitates the configuration and monitoring of the engine operation, which is important for optimal efficiency and safety of work.

It is also worth emphasizing the built-in protection against overvoltage and overload, which makes the engine not only efficient but also safe to use. The iEM-2435 engine is a reliable solution that will work well in various industrial applications, ensuring high quality, efficiency and safety of work.

Ensuring the quality of processing and work accuracy thanks to the lack of step loss and position errors, which translates into smooth machine operation.

Easy and quick configuration without the need for troublesome tuning, which reduces implementation costs.

Noise and vibration reduction, which affects the smoothness of machine movement and work comfort.

Built-in incremental encoder with 14-bit resolution ensuring precise positioning.

Protection against overvoltage, overload and position errors, which increases motor reliability.

iEM integrated stepper motors are reliable and affordable, they can be used in various applications such as 3D printers, plotters, small packaging machines, etc.

The alarm signal informs about errors such as overvoltage, overcurrent or position tracking error, allowing for a quick response in the event of a failure.

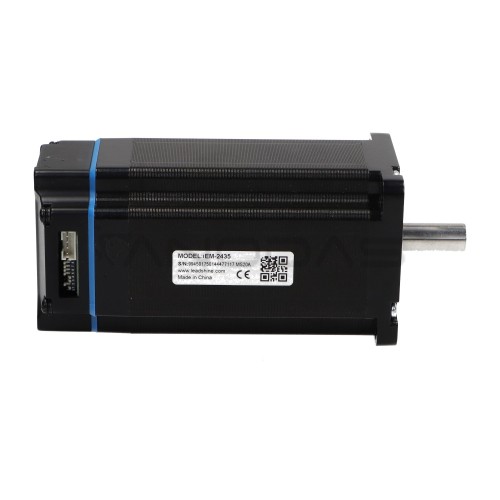

Port P2 is used to modify engine parameters using the Leadshine software, it is not used to control the device.

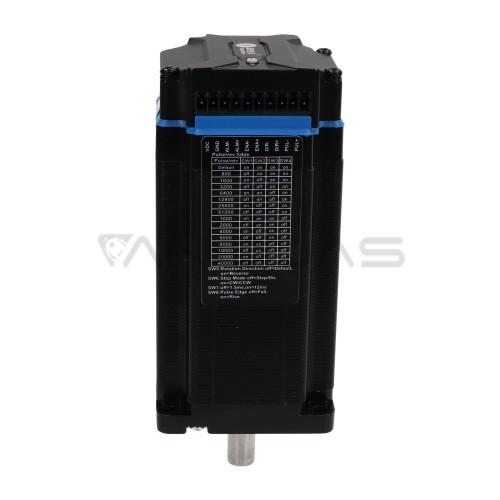

The motor can be configured without having to connect to a configuration program using DIP Switches, allowing adjustment of stepping, direction of rotation and operating mode.

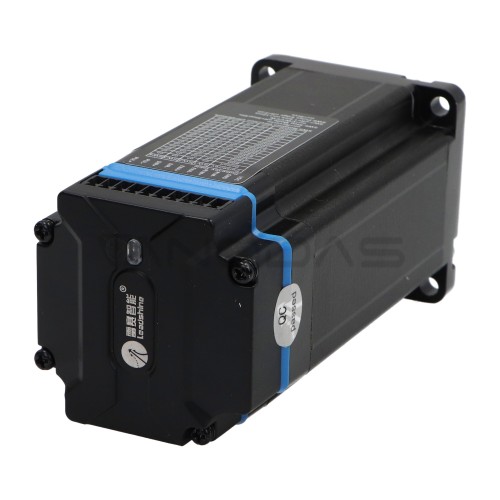

LED signaling:

LEDs indicate power and safety status, making it easy to monitor engine operation.
