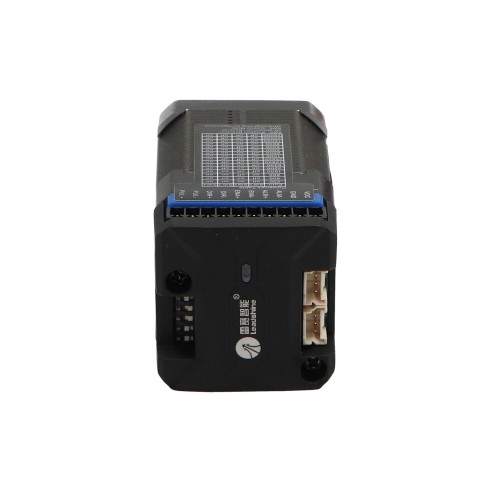

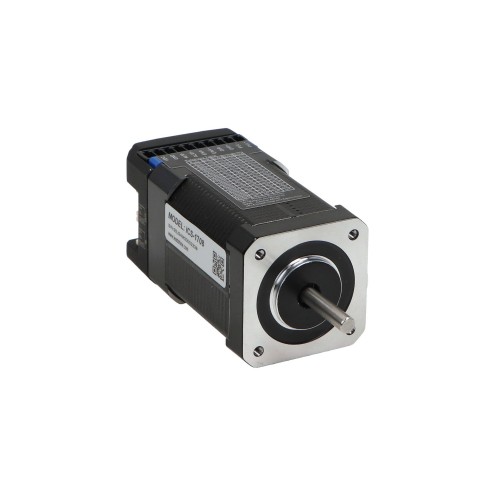

Integrated iCS-1708 servo stepper motor - 0.8Nm Leadshine

Brand: Leadshine Technology
Product Code: MX-IW-ICS-1708
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-21
132.20€
Ex Tax: 109.26€

Qty

· NEMA17 size (flange/body 42mm)
· High holding torque - 0.8Nm
· Improved performance, especially in low speed applications (<60 rpm)
· Soft start without "jumps" of the drive system when turning on the engine power
· Step and direction pulse control (PUL&DIR/step and direction)
· 3 digital inputs, 1 digital output; all with optical isolation
· Incremental encoder with 14-bit resolution

· RS232 communication for connection to Leadshine software (for configuration purposes)


Input opto-isolation: Yes
Holding moment [Nm]: 0.8
Phase current [A]: 0.3 - 3.0
Controls: step + direction
Maximum input frequency: 200KHz
Supply voltage min-typical-max: 20-24-36 VDC
