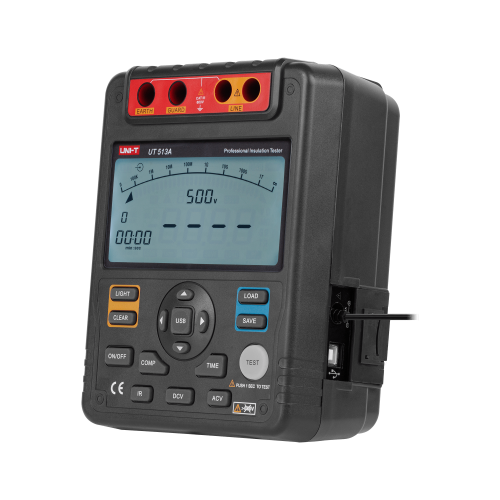

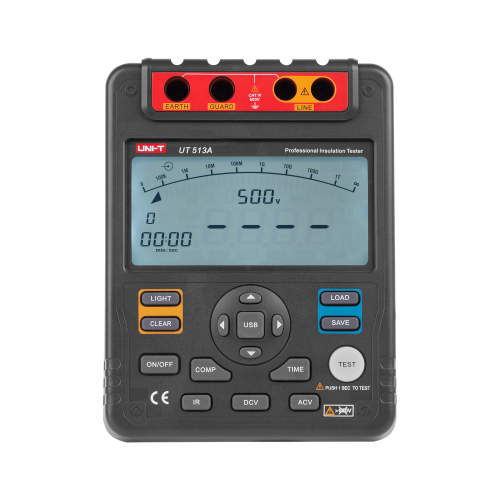

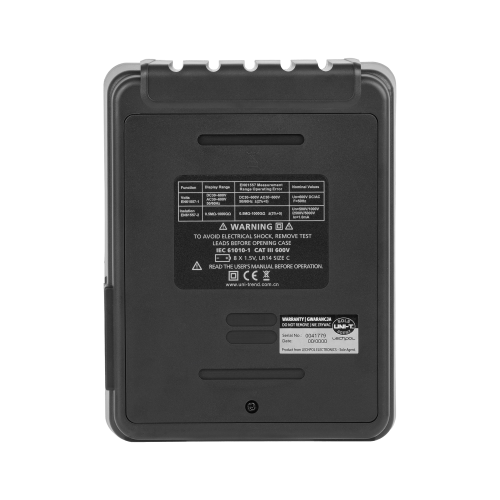

Insulation resistance meter Uni-t UT513A

The UNI-T UT513A insulation resistance meter is a digital measuring device. Allows high resistance to be measured up to 1000 GOhm at a test voltage of 5000 V. Among the many additional functions, it is worth noting the dielectric absorption test, polarization indexing or comparison function. This model complies with IECG1010 standards.
Technical data:

• Test voltage:
• • 500 V: 0 ~ 20 GOhm
• • 1000 V: 0 ~ 40 GOhm
• • 2500 V: 0 ~ 100 GOhm
• • 5000 V: 0 ~ 1000 GOhm
• • 0 ~ 99.9 MOhm ± (3% + 5)
• • 100 MOhm ~ 9.99 GOhm ± (5% + 5)
• • 10 GOhm ~ 99.9 GOhm ± (10% + 5)
• • above 100 GOhm ± (20% + 5); at relative humidity <50%
• Short-circuit current: <2 mA
• Test current: 1 ~ 1.2 mA
• DC voltage: 30 ~ 600V ± (2% + 3)
• AC voltage: 30 ~ 600V ± (2% + 3); 50/60 Hz
• Dielectric absorption
• Polarization index
• Automatic change of measuring ranges
• Comparative function
• Low battery indicator
• High voltage warning
• Backlit LCD screen
• Analog tape graphics
• Record memory: 18
• Automatic shutdown
• USB connection
• Power supply: 8x 1.5 V battery (LR14)
• Screen: 123 x 58 mm
• Dimensions: 202 x 155 x 94 mm
• Weight: 2 kg

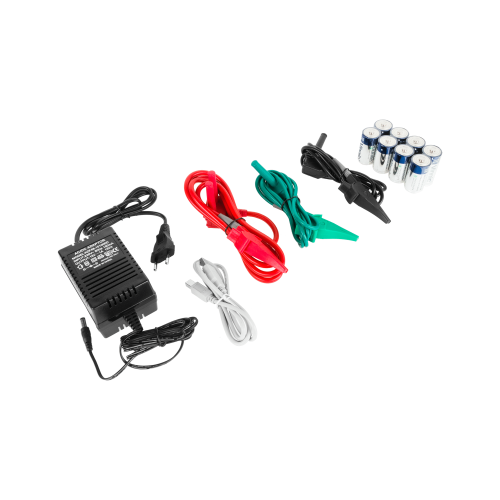

Included:

• USB wire
• Compact disc
• External power supply
• Batteries
• Case
