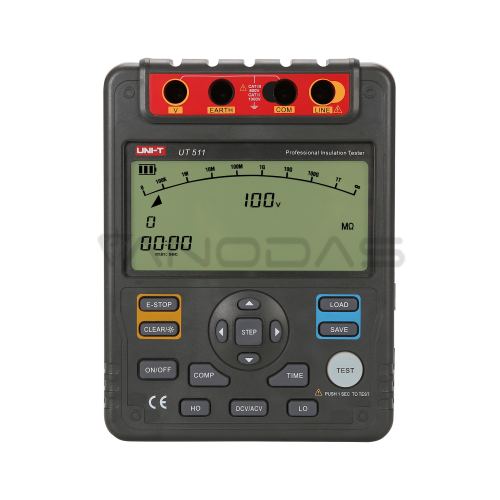

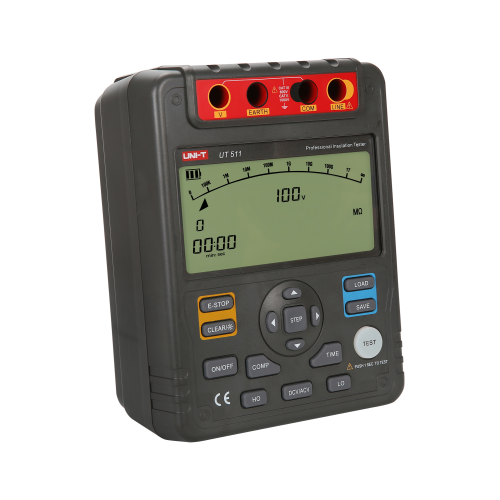

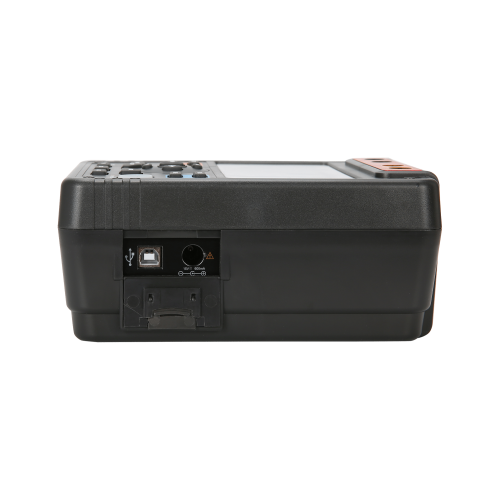

Insulation resistance meter Uni-t UT511

Brand: UNI-T
Product Code: MIE0098
Availability: 4-6 business days
Planuojama gavimo data po uĹľsakymo: 2025-05-06
159.80€
Ex Tax: 132.07€

Qty

The UNI-T UT511 insulation resistance meter is a digital measuring device for both electronics. Allows high resistance to be measured up to 10 GOhm at a test voltage of 1000V. In addition, this meter allows you to measure AC and DC voltages as well as low resistances. Among the many additional functions, it is worth noting the dielectric absorption test, the polarization indexing, and the comparative function. This model complies with IECG1010 standards.
Technical data:

  • Test voltage 100 V:
  • • 0.1 MOhm ~ 99.9 MOhm ± (3% + 5)
  • • 100 MOhm ~ 500 MOhm ± (5% + 5)
  • Test voltage 250 V:
  • • 0.5 MOhm ~ 99.9 MOhm ± (3% + 5)
  • • 100 MOhm ~ 999 MOhm ± (5% + 5)
  • 1 GOhm ~ 1.99 GOhm ± (5% + 5)
  • 500 V test voltage:
  • • 1 MOhm ~ 99.9 MOhm ± (3% + 5)
  • • 100 MOhm ~ 999 MOhm ± (5% + 5)
  • 1 GOhm ~ 3.99 GOhm ± (5% + 5)
  • 1000 V test voltage:
  • • 2 MOhm ~ 99.9 MOhm ± (3% + 5)
  • • 100 MOhm ~ 999 MOhm ± (5% + 5)
  • 1 GOhm ~ 10 GOhm ± (5% + 5)
  • Test current: 1 mA ~ 1.2 mA
  • Short-circuit current: <2mA
  • DC voltage: 30 ~ 1000 V ± (2% + 3)
  • AC voltage: 30 ~ 750 V ± (2% + 3)
  • Low resistance: 0.1 Ohm ~ 999.9 Ohm ± (1% + 3)
  • Automatic change of measuring ranges
  • Dielectric absorption test
  • Polarization indexing
  • Comparative function
  • Low battery indicator
  • High voltage warning

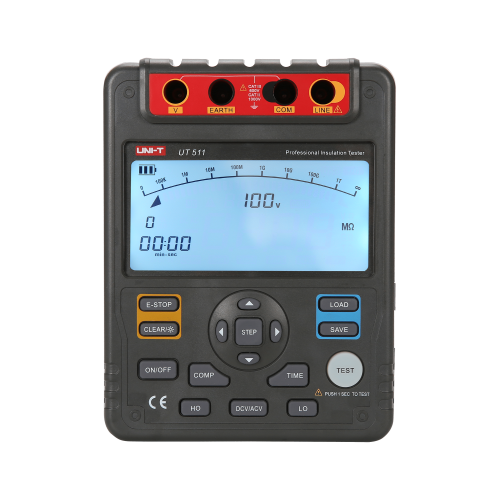

  • Backlit LCD screen
  • Buzeris
  • Analog chart: 30 segments
  • Automatic shutdown
  • Power supply: 8x 1.5 V battery (LR14)
  • Screen: 123 x 58 mm
  • Product dimensions: 202 x 155 x 94 mm
  • Product weight: 1.2 kg

Included:

  • 3x test lead with crocodile clamps
  • Batteries
  • Case
