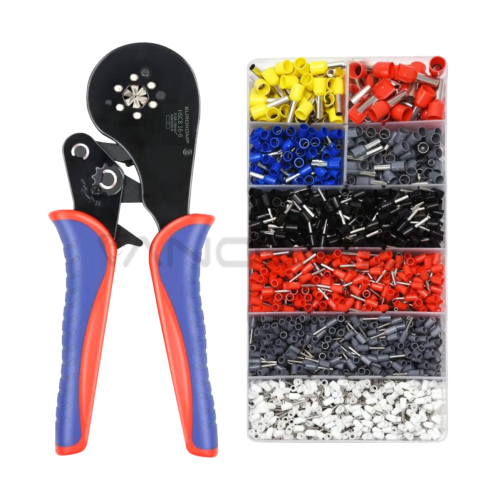

Insulated cable termination kit + crimping tool E6213

Brand: Eurokomp
Product Code: NAR0885
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-05-13
56.50€
Ex Tax: 46.69€

Qty

Insulated cable termination kit + crimping tool for 16mm

Crimping tool for insulated and non-insulated, single and double terminals.

HEXagonal clamping system, thanks to which you do not need to use much force to clamp

The highest quality of workmanship,

Certainty of a good crimp thanks to the locking system, which allows the pliers to be opened only after the tip has been crimped.

High comfort of use thanks to its handy shape and low weight

A handy, very durable tool.

Rubberized handles improve work comfort

Operating range:

For single sleeves: 0.08-16 mm2

Technical data:

Terminals: insulated and non-insulated, single and double,

Weight: 0.36 kg,

Length: 20.5 cm,

Hardened head,

A handy automatic press,

Crimping with one hand,

Ratchet clamping support system,

The highest quality of workmanship and long tool life,

Compliance with the EN 50109-1 standard.

Our top model with clamp assist.

In the offered model, the crimping process is additionally supported by a ratchet clamping support system. A special mechanism allows comfortable clamping with one hand.

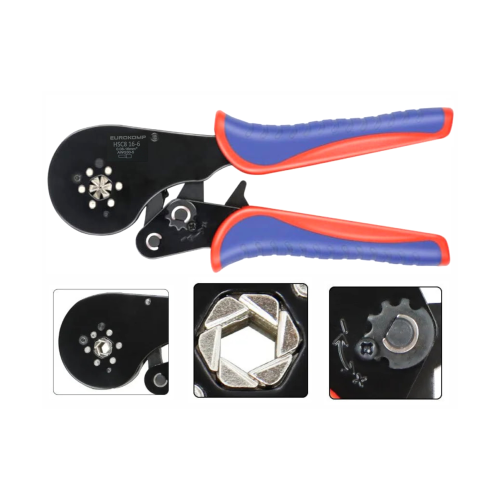

Hexagonal clamping system

In the offered model, the ferrule is crimped on six sides, which makes it very firmly attached to the cable. An additional advantage of this solution is the shape of the crimped sleeve, which is similar to a circle, which makes it much easier to insert such a crimped cable into the socket.

Cable lugs for stranded cables:

Quantity: 1800 pcs

Material: PVC + copper

Packaging: PVC box with compartments

Color: red, white, yellow, black, gray, blue

Size:

500 pieces E0508-White: (for cable 0.5mm2, length of protruding element 8mm)

400 pieces E7508-gray: (for cable 0.75mm2, length of protruding element 8mm)

350 pieces E1008-Red: (for cable 1.0mm2, length of protruding element 8mm)

100 pieces E2508-blue: (for cable 2.5mm2, length of protruding element 8mm)

70 pieces E4009-gray: (for cable 4.0mm2, length of protruding element 9mm)

50 pieces E6012-yellow: (for 6mm2 cable, protruding length 12mm)

30 pieces E1012-red: (for cable 10mm2, protruding length 12mm)
