Industrial segmental gate TECH-1 drive
Ex Tax: 536.36€
Reliable TECH-1 industrial gate drive
What should be the ideal industrial gate operator? Automation of industrial gates requires the use of the best technologies and the most durable materials. That's what our new TECH-1 industrial gate operator is all about: robust, quiet, fault-free and modern, yet easy to use.
TECH-1 side automatic drive for industrial sectional gates is intended for gates with an area of up to 35 m² and a height of up to 5 m. The high motor torque of 65 Nm guarantees that the drive will operate stably even with very heavy gates. The three-phase 230V motor with a power of 500W together with the inverter ensures precise modulation of the rotation speed without losing the drive power. The machine's control panel has three control buttons (open, close, stop) that allow you to fully control the work. If the drive stops, the voltage is immediately cut off, making the device safe for users. In the event of a power failure, the gate can be opened or closed using the supplied chain.
Safety and reliability
Mechanical limit switches and a motor sensor allow precise adjustment of the drive operation. Functions such as soft start and stop, emergency stop and advanced protection functions (thermal, amperometric and time) are responsible for the high smoothness of the machine operation. The actuator is designed for a standard 1 inch gate shaft (25.4mm), so it is suitable for most gates. The TECH-1 industrial gate drive is perfect for use in difficult conditions in production halls or warehouses, ensuring safety and reliability. The controller allows blocking operation when a signal is detected from an open gate door or other safety devices such as side bars.
Features:
- simple assembly
- the drive cooperates with various security measures installed in the gate
- easy to set and precise limit switches
- equipped with a chain drive

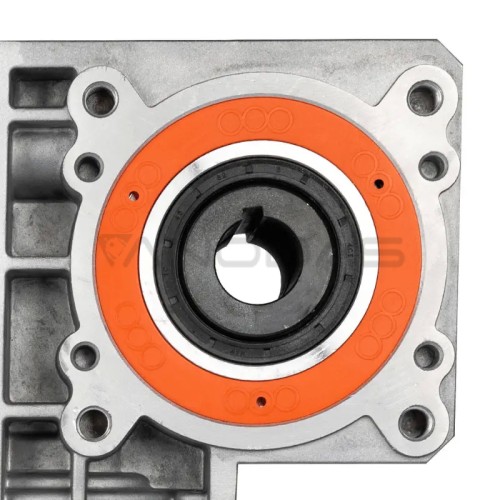

- mounts on standard 1" gate shaft (25.4mm)
- Application: as a drive for roller blinds, curtains, sectional doors, industrial garage doors

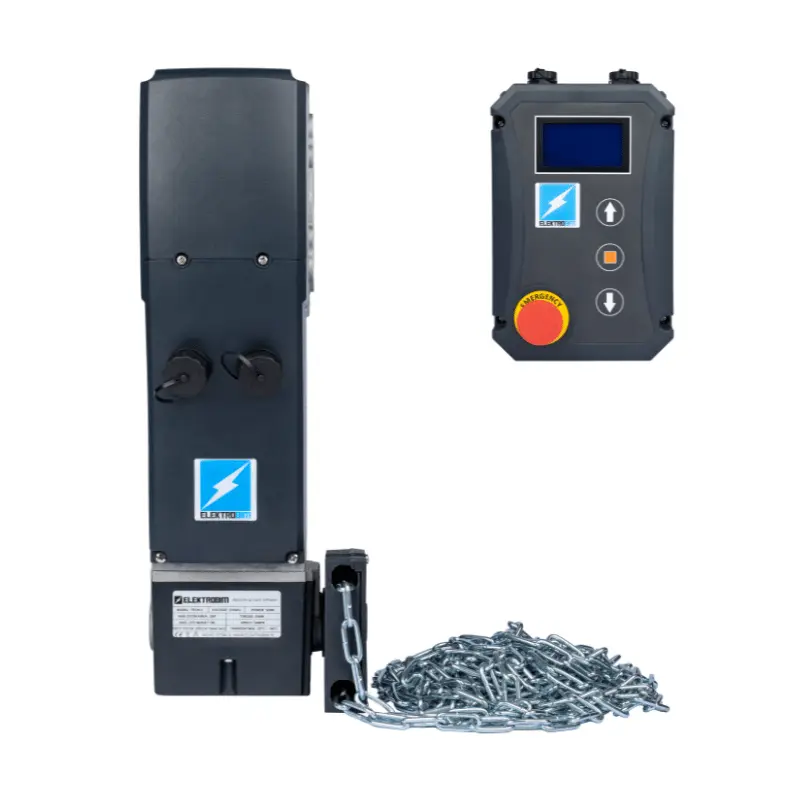

In the set:

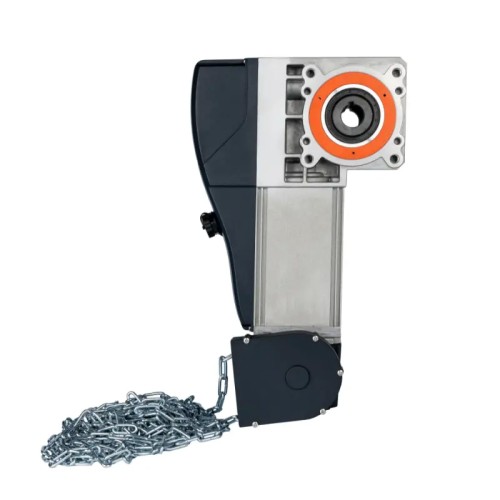

- Industrial garage door motor TECH-1

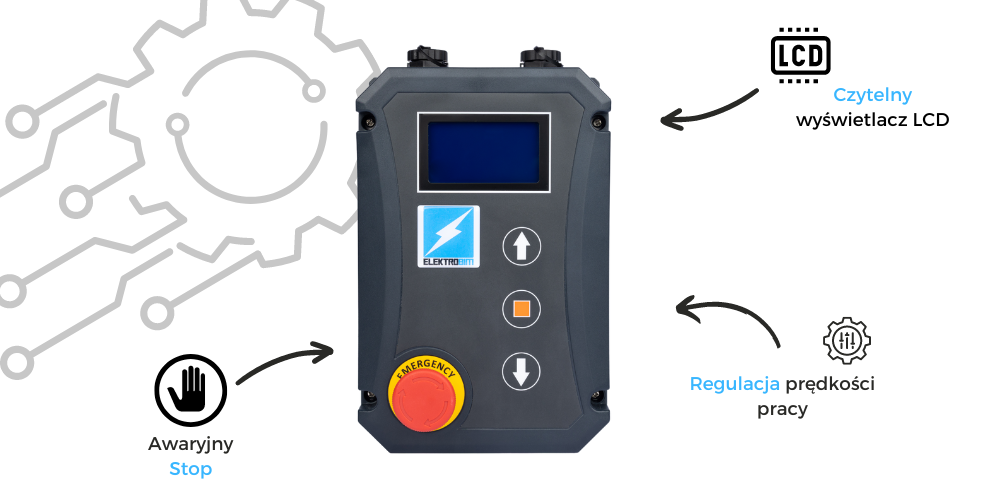

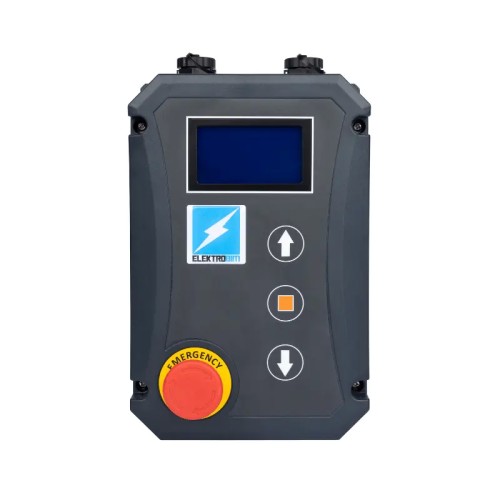

- TECH-1 control unit with safety switch and control buttons on the panel
- two cables connecting the control panel to the drive (power + signal)

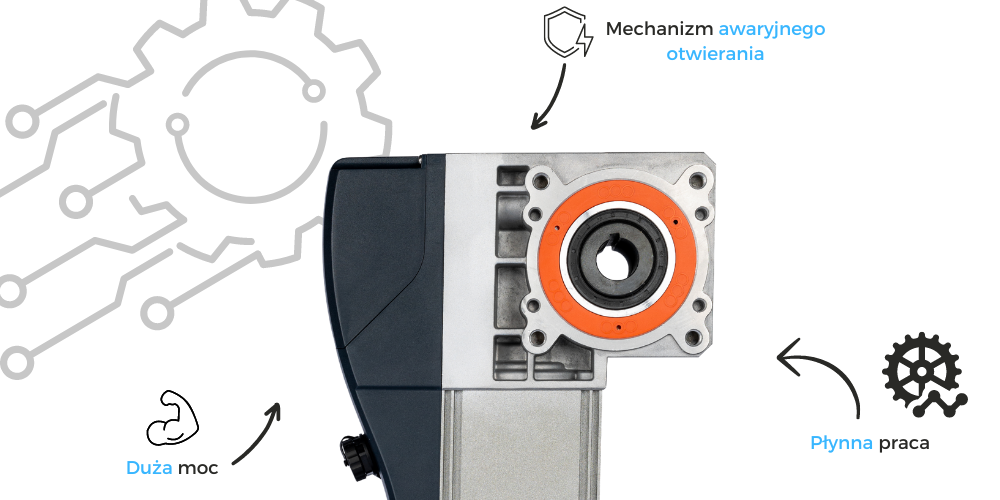

- emergency opening mechanism with chain
- fasteners (fastening screws, steel base)
- shaft wedge
- instruction
Specifications:
- Power supply: 230VAC
- Motor power: 500W
- Torque: 65 Nm
- Output speed range: 10-50 RPM
- Manual control: by chain
- Operating speed: 30 rpm@60% / 5 rpm@100%
- Gate area: up to 35m2
- Gate height: up to 5m
- Shaft diameter: 25.4 mm
- Off limit switch: mechanical
