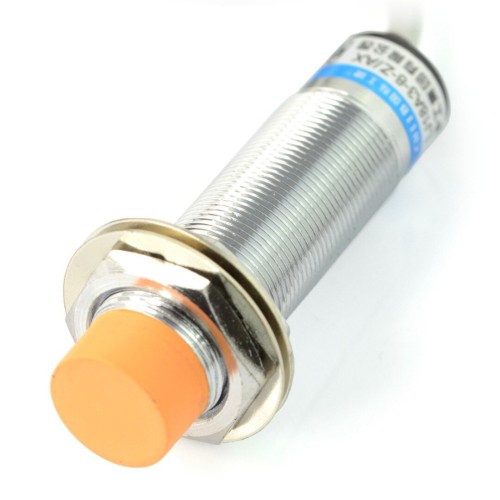

Inductive proximity sensor LJ18A3-8-Z/CY 8mm 6-36V

Brand: OEM
Product Code: AN-11870
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-11
9.20€
Ex Tax: 7.60€

Qty

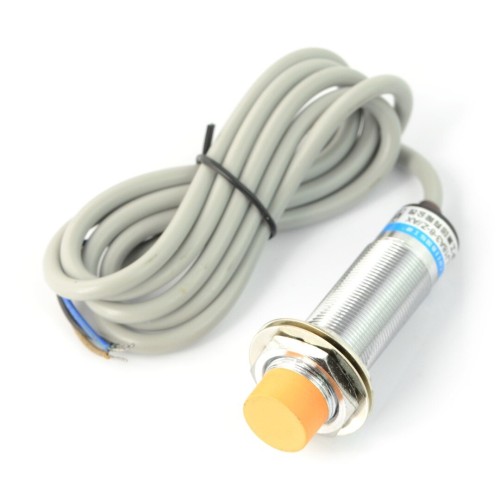

Inductive, digital proximity sensor with a cable with the length of 100 cm and nuts to facilitate mounting. It detects metal at a distance of up to 8 mm. The object detection is signaled by the appearance of high status at the output. It is powered with a voltage from 6 V to 36 V.

Specification:

  • Supply voltage: 6 V to 36 V
  • Current consumption: 10 mA
  • Measuring range: 0 to 8 mm ± 10%
  • Output signal: digital 300 mA
  • Output status: by default, in low status, after the detection of the object, it changes to high status
  • Output type: PNP - NO+NC
  • LED, indicating the detection of the object
  • Detected object: metal
  • Response time: below 2ms
  • Operating temperature: -30 °C to 65 °C
  • Diameter: 12 mm
  • Sensor's length: 56 mm
