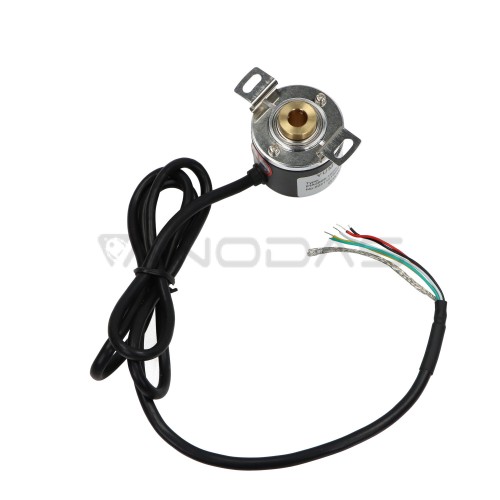

Incremental rotary encoder IHA3808-401G-1000BZ1-5-24F, 1000imp/rev, 5-30VDC, fi38mm, hole 6mm, Push-Pull, Yumo
Ex Tax: 68.76€
An encoder is a device that converts rotational motion into a sequence of pulses. A precise optical system is installed inside. The use of an encoder allows you to measure the number of revolutions, rotational speed, distance, acceleration and direction of rotation.
A very common use of an encoder is to connect it to a screw or a measuring roller, which allows measuring the displacement of linear elements. e.g. shifting distance or shifting speed. Encoders are also found mounted on servo motors. Our encoders are perfect as replacements for damaged servo encoders or for modernizing older types of servo drives.
Encoders are very often used in industrial automation to automate certain activities, of course in combination with an appropriate controller.
Encoders with Push-Pull output from the IHA3808 series, hole for axis with a diameter of 8 mm. The encoders have A, B and Z channels, enabling the determination of the reference position of the encoder. A wide range of supply voltages from 5V to 30V and a Push-Pull output enable the encoder to be used in many devices and its very simple connection. The connection cable leading from the side of the housing is equipped with a screen that protects the signals coming from the encoder against interference. The encoder can operate at a rotation speed of up to 6000 r/min, the maximum signal frequency generated at the output is 100 kHz. Operating temperature range -30 degrees C to +90 degrees C.
IHA series encoders meet the moisture resistance standard: IP51 (not waterproof)
Encoder pins:
RED - VCC power supply 5V - 30V DC
BLACK - GND ground
GREEN - channel A
WHITE - channel B
YELLOW - Z channel
SCREEN - shielding braid
Type: incremental
Shaft diameter: 8mm
Operating voltage: 5-30V DC
Operating temperature °C: -10 to 70
Output type: Push-Pull/Line Driver
Cable length: 0.95m
Resolution: 1000 imp/rev
Shaft: hollow
Channels: ABZ
Housing diameter: 38mm
