IGUS CFROBOT4.006 cable
Ex Tax: 43.31€
CFROBOT4.006 cable
- greater resistance to torsion load
- PUR outer jacket
- shielded
- Resistant to oils and coolants
- Tear-resistant
- does not sustain combustion
- resistant to hydrolysis and microorganisms
Chainflex® cable classification:
Class 6.6.3
Load:
6: Cables designed for continuous movement in cable guides under heavy load. radii from 5 x diameter. speed up to 10 m/s
Stroke Length:
6: Applications requiring twisting of cables
Oil resistance:
3: Oil resistance (according to DIN EN 50363-10-2)
| temperature range in motion: | -25°C to +80°C. minimum twisted bend radius 10 xd | |
| Temperature range after installation | From -40°C to +80°C. bending radius min. 4 xd | |
| V max twisted pair | 10 m/s | |
| a max. | 10 m/s² | |
| Travel path | Robots and movements in the 3D area. class 1 | |
| turn | ± 180°. with a cable length of 1 m | |
| resistant to UV radiation | BFOC(ST) connectors with conversion to SC on both ends | |
| Nominal voltage | 30 May | |
| Test voltage | 500V | |
| Oil | Oil-resistant (based on DIN EN 50363-10-2). class 3 | |
| does not sustain combustion | Complies with IEC 60332-1-2 standard. CEI 20-35. FT1. VW-1. | |
| No silicone | Free from substances that negatively affect the adhesion of paint (according to PV 3.10.7 - status from 1992). | |

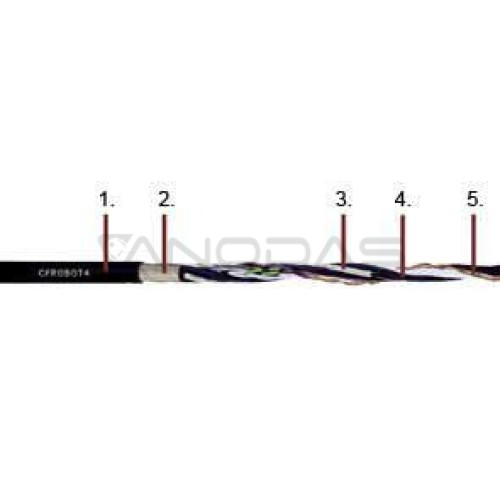

| Vein | Stranded cable in a particularly flexible version made of bare copper conductors (according to EN 60228) | |
| Core insulation | Down. high-quality TPE mixture. | |
| Item screen | Extremely torsion-resistant screen cover made of galvanized copper, screen approximately 85% optical | |
| Outer coat | Low-adhesive. Very abrasion-resistant PUR-based compound, halogen-free (according to DIN VDE 0282 part 10) suitable for the requirements of E-Chain® chains. Color: Steel blue (similar to RAL 5011) | |
| CEI | Based on CEI 20-35 | |
| CE | Based on 2006/95/EC | |
| Lead-free | In accordance with (RoHS) 2002/95/EG. | |
| UL/CSA | > 0.25 mm2: Style 1589 and 20963. 30 V. 80 °C – from production date 5/2011 ≤ 0.25 mm2: Style 1589 and 20236. 30 V. 80 °C – from production date 5/2011 | |
| NFPA | In accordance with NFPA 79-2012 guidelines. chapter 12.9 (production date 09/2011) | |
| Clean rooms | Complies with ISO Class 1. The outer material of the shirt complies with CF27.07.05.02.01.D. IPA tested according to standard 14644-1 | |
| CTP | C-DE certificates. PB49.B.00416 |
Typical use of the cable
- for maximum loads with twisting movements
- Almost unlimited oil resistance
- for indoor and outdoor use. UV resistant
- especially for robots and 3D movements
- robots. service. screw drives
