IGUS cable CF240.01.24 - (24 x 0.14)C

Brand: Igus
Product Code: MX-CF240-01-24
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-16
11.90€
Ex Tax: 9.83€

Qty



Cable CF240.01.24
  • For heavy loads
  • Outer PVC cover
  • shielded
  • Oil resistant
  • does not sustain combustion

Chainflex® cable classification:
Class 4.3.2
Load:
4: Specially constructed cables for continuous movements in energy chains under medium load. radii from 7.5 x diameter. speed up to 3 m/s
Stroke Length:
3: Travels up to 50 m
Oil resistance:
2: Oil resistance (according to DIN EN 50363-4-1)

temperature range in motion: -5 °C to +70 °C according to DIN EN 60811. part 1-4. paragraph 8.2.
+5 °C to +70 °C when used in energy chains at > 50,000 strokes
Bending radius 10 x d. with offset < 10 m.
Bending radius 12 x d. with offset ≥ 10 m
Temperature range after installation From -20°C to +70°C. bending radius min. 5 xd
v max. self-supporting/gliding 3 m/s. 2 m/s
a max. 20 m/s²
Travel path For unsupported and sliding travel up to 50 m, class 2.
Nominal voltage 300/300 V (based on DIN VDE 0245)
Test voltage 1500V
Oil Oil-resistant (based on DIN EN 50363-4-1). class 2.
does not sustain combustion in accordance with IEC 60332-1. CEI 20-35. FT1. VW-1
No silicone Free from substances that negatively affect the adhesion of paint (according to PV 3.10.7 - status from 1992).

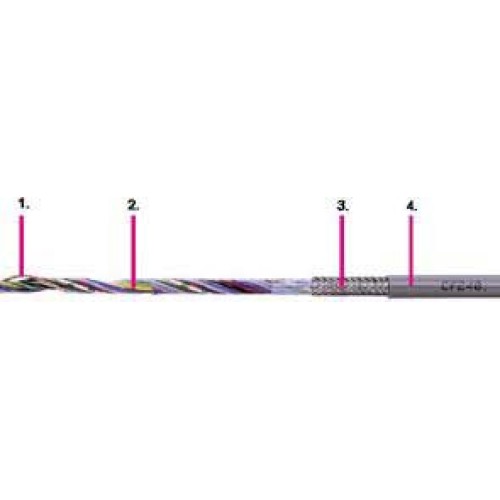

Vein special fine-stranded copper conductor, extremely resistant to bending. from bare copper wires
Core insulation PP blend with high mechanical quality.
Vein twist The individual cores are interwoven in layers. with a short stroke.
Vein marking Color code according to DIN 47100
Intermediate casing Wrapping the outer layer with foil.
Full screen Extremely resistant to bending. tin coated braided copper screen. Coverage approximately 70% linear. approx. 90% optical
Outer coat PVC-based mixture adapted to the requirements of energy chains. low-adhesive. oil-resistant (according to DIN VDE 0282. part 10).
Color: gray (comparable to RAL 7001)
UL/CSA Style 10493 and 2464. 300 V. 80°C
NFPA In accordance with NFPA 79-2012 guidelines. chapter 12.9 (production date 09/2011)
CEI Based on CEI 20-35
CE Based on 2006/95/EC
Lead-free In accordance with (RoHS) 2002/95/EC - from production date 1/2006
Clean rooms Complies with ISO Class 2. The outer material of the shirt complies with CF5.10.07. IPA tested according to standard 14644-1
CTP C-DE certificates. PB49.B.00416
EAC TC RU C-DE certificates. ME77.B.01254


Typical use of the cable
  • For heavy loads
  • Light oil influence
  • intended for indoor use. but also outdoors at temperatures > 5 °C
  • Especially for unsupported and sliding travel distances of up to 50 m.
  • Storage and unloading devices for high-bay warehouses. packaging industry. manipulation. internal cranes
