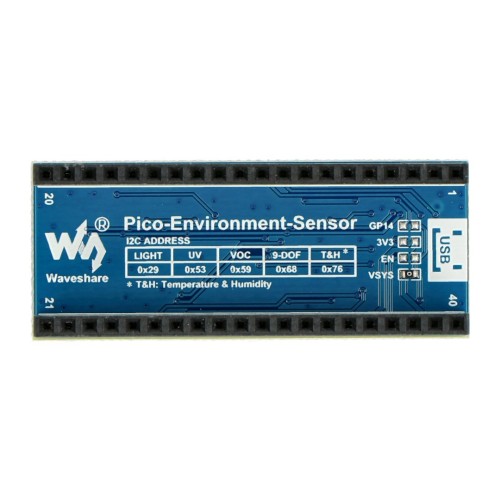

I2C Environmental Sensor - for Raspberry Pi Pico - Waveshare 20232

• Environmental sensor specifications:
• Purpose: for Raspberry Pi Pico
• Built-in sensors:
• digital ambient light sensor
• temperature, humidity and air pressure sensor
• motion sensor - 3-axis accelerometer, 3-axis gyroscope, 3-axis magnetometer
• UV radiation sensor
• sensor for the detection of volatile organic compounds in the environment
• Communication interface: I2C bus
• Board dimensions: 52 x 21 mm

• Ambient light sensor specification:
• Embedded chip: TSL25911FN
• I2C interface address: 0x29
• Range: 0 lx to 88000 lx

• Temperature, humidity and air pressure sensor specification:
• Embedded chip: BME280
• I2C interface address: 0x76
• Temperature measurement
• range: from -40 °C to 85 °C
• resolution: 0.01 °C
• accuracy: ± 1 °C
• Humidity measurement:
• range: from 0% to 100% RH
• resolution: 0.008% RH
• accuracy: ± 3% RH
• response time: 1s
• delay: ≤ 2% RH
• Pressure measurement:
• range: from 300 hPa to 1100 hPa
• resolution: 0.18 Pa
• accuracy: ± 1 hPa

• Motion detector specifications:
• Integrated circuit: ICM20948
• Number of degrees of freedom: 9 DoF
• Number of measurement axes: 3 (X, Y, Z)
• I2C interface address: 0x68
• Resolution: 16 bit
• Accelerometer:
• measurement: acceleration
• range: ± 2, ± 4, ± 8, ± 16 g (configurable)
• Gyroscope:
• measurement: angular velocity
• range: ± 250, ± 500, ± 1000, ± 2000 °/s (configurable)
• Magnetometer:
• measurement: magnetic field
• range: ± 4900 µT

• Specification of UV measurement sensor:
• Embedded circuit: LTR390-UV-1
• I2C interface address: 0x53
• Wavelength: 280 nm to 430 nm

• Specification of VOC sensor:
• Purpose: to detect volatile organic compounds in the environment
• Embedded circuit: SGP40
• I2C interface address: 0x59
• Measurement scale: from 0 ppm to 1000 ppm
• VOC index value: from 0 to 500
• from 0 to 100 - air quality: excellent
• 100 to 200 - air quality: good
• 200 to 300 - air quality: slightly polluted
• 300 to 400 - air quality: moderately polluted
• between 400 and 500 - air quality: very polluted
