Humidity Sensor SYH-2R - no case

Product Code: AN-08089
Availability: Temporarily Out Of Stock
3.10€
Ex Tax: 2.56€

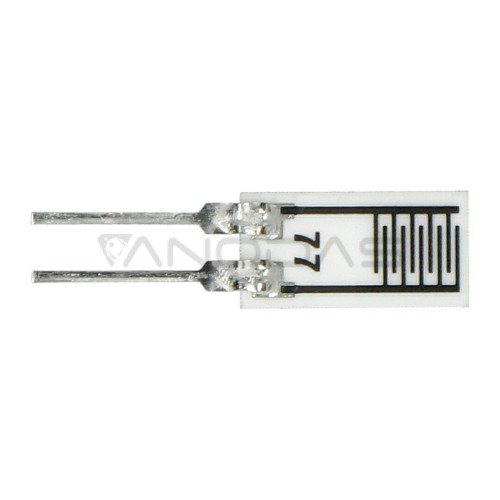

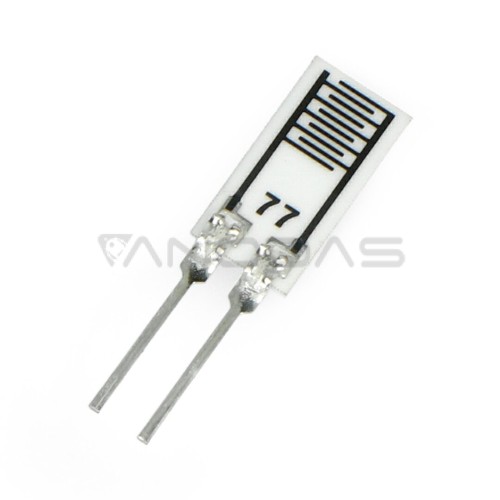

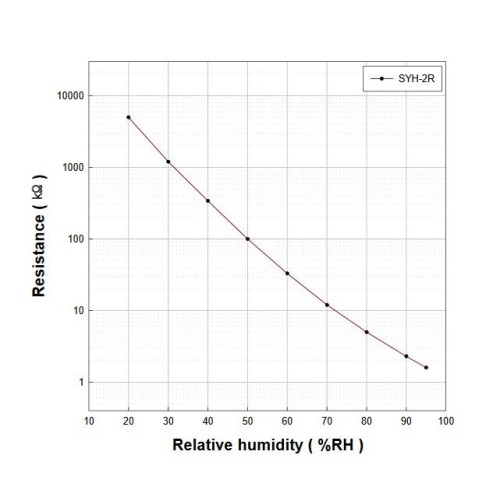

Analog air humidity sensor changes the resistance depending on the humidity level. It operates in the range of 10% to 95% RH. The module has no case.

Specification:

  • Symbol: SYH-2R
  • Power: 0,26 mW
  • Working voltage: up to 5 V AC
  • Measuring range: 10% to 95% RH
  • Operating temperature: -20 °C to 85 °C
  • Operating frequency: from 100 HZ to 10 kHz
  • Accuracy: +/- 3% RH (at 25 °C)
  • Module without case
  • Module dimensions (without pins): 10 x 5 x 0.65 mm
