Human Static Presence Module Lite - mmWave 24GHz sensor - MR24HPC1 - Seeedstudio 101991030
Brand: Seeedstudio
Product Code: AN-22530
Availability: 4-6 business days
Planned delivery date after ordering: 2025-02-21
Product Code: AN-22530
Availability: 4-6 business days
Planned delivery date after ordering: 2025-02-21
Ex Tax: 10.41€

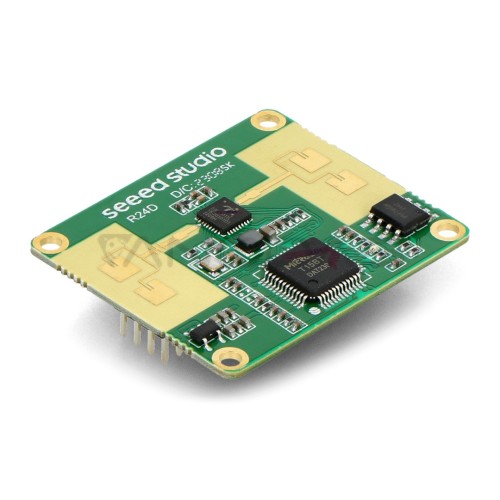

Human Static Presence Module Lite is a proposal from Seeedstudio in the form of a board that allows you to detect the presence and activities of a human. It also allows you to detect the movement and direction from which it comes, the speed of the object and the distance at which it is located. Moreover, the board offers the ability to adjust the basic parameters, including adjusting the detection range, detection sensitivity, trigger threshold, important transition time and installation environment. The combination of these features makes the Human Static Presence Module Lite a module that will be used when building your own radars that detect the movement of objects.
Main features:
- Frequency Modulated Continuous Waveform, i.e. a radar for tracking objects that is very sensitive and resistant to environmental interference
- A simple and quick-to-use module while maintaining a clear presentation of data
- A wide range of configurable basic parameter settings to support extended scenarios
- Communicates via UART serial bus and provides support for Arduino libraries
Specification:
- Motion detection range: 0 m to 5 m
- Detection angle: 90° horizontal, 60° vertical
- Operating frequency: from 24 GHz to 24.25 GHz
- Antenna Gain: 10 dBi
- Horizontal beam (3 dB): 100°
- Vertical beam (2 dB): 80°
- Operating voltage (VCC): 4.5 V to 6 V (5 V typical)
- Current Consumption (ICC): 95 mA to 120 mA (110 mA typical)
- Buad Rate: typically 115200
- Board dimensions: 35 x 30 x 9 mm
