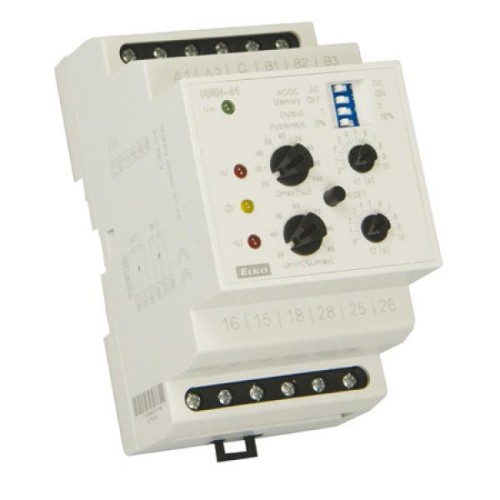

HRN-41/230V voltage control relay

Brand: ELKO EP
Product Code: MX-P1701-005-0010
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-19
132.10€
Ex Tax: 109.17€

Qty

- relay for monitoring single-phase DC and AC voltages in 3 ranges
- monitors 2 independent voltage thresholds (Umin / Umax)
- two versions. HRN-41: "HYSTERESIS" function and HRN - 42: "WINDOW" function - "MEMORY" function
- to return from the error state to the normal operating state, you need to press “RESET” on the front panel of the camera
- second relay function (independent/dependent)
- adjustable delay to eliminate short dips and peaks for each level
- galvanically separated power supply from measurement inputs (compared to the HRN-3 version)
- 1x changeover output contact 16 A / 250 V AC1 separate for each supervised threshold
- 3-MODULE version. DIN rail mounting


Supply voltage: 230V
Rated current: 16A
Number of contacts: 2NCNO
Power consumption: 4.5VA
Range of controlled quantity: 10-50V; 32-160V; 100-500V
