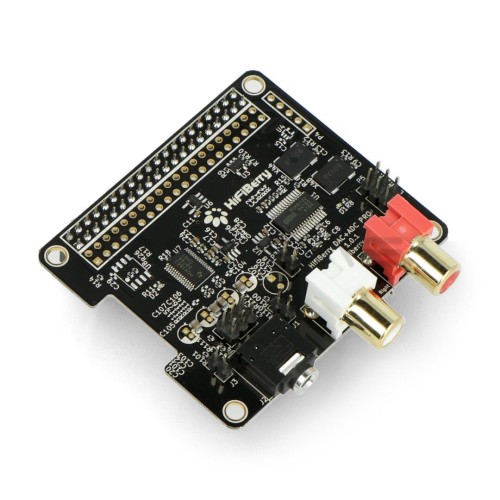

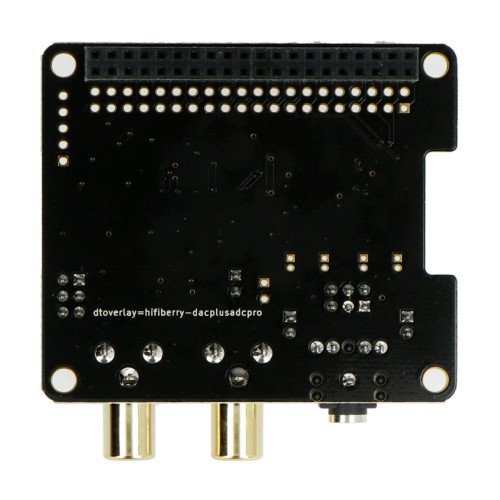

HiFiBerry DAC+ ADC Pro, sound card for Raspberry Pi 4B/3B+/3B

The sound card in the form of a 40-pin overlay for the Raspberry Pi minicomputer version 4B / 3B+ / 3B and above. Overlay powered directly from the minicomputer. It is equipped with RCA and 3.5 mm jack connectors, stereo input and output, as well as dedicated 192 kHz / 24 bit, high-quality Burr-Brown DAC and ADC.

Main features:

• Stereo input and output
• Dedicated 192 kHz / 24 bit, high-quality Burr-Brown DAC
• Dedicated 192 kHz / 24 bit, high-quality Burr-Brown ADC
• Hardware DAC and ADC volume control. You can control input and output via alsamixer or any application supporting ALSA mixer control
• Connected directly to the Raspberry Pi, no additional cables are required
• No soldering required
• Compatible with any version of the Raspberry Pi equipped with a 40-pin GPIO connector
• Powered directly from Raspberry Pi
• Three voltage regulators with very low noise levels for best sound quality
• Two-domain low jitter clock for optimized separation of the clock from the PI Raspberry
• Microphone polarization voltage for the use of electret microphones
• No input anti-aliasing filter for better recording throughput
• HAT-compatible, with EEPROM for automatic configuration
• Paid outputs of the CAR
• Included mounting elements such as M2.5x12 mm nylon spacers
• Audio input may require an update of the Linux kernel


Specification:

• Maximum input voltage: 2.1 Vrms, 4.2 Vrms for balanced input
• Maximum output voltage: 2.1 Vrms
• ADC signal-to-noise ratio: 110 dB
• DAC signal-to-noise ratio: 112 dB
• ADC THD+N: -90 dB
• DAC THD+N: -93 dB
• Frequency response: 10 Hz to 70 kHz (-3 dB)
• Input gain: -12 dB to 32 dB
• Power consumption: up to 0.3 W
• Sampling rate: 44.1 kHz to 192 kHz
• Connectors: 2x gold plated RCA, 1x Jack 3.5 mm
• Dimensions: 55 x 65 x 25 mm
• Weight: 30 g
