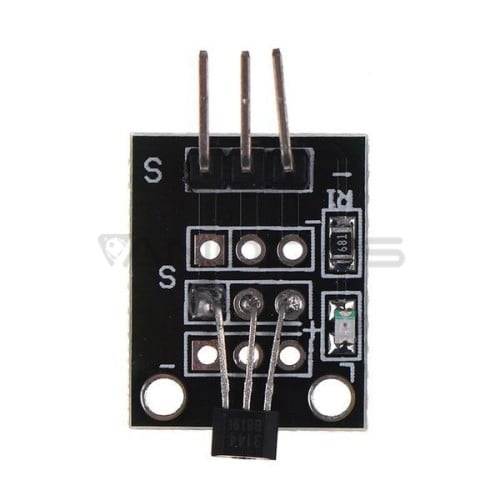

Hall sensor module - KY-003 - hall sensor 3144 - switching - 3pin
Hall sensor module - KY-003 - Hall sensor 3144 - 3pin The Hall effect sensor responds to a change in the magnetic field, which makes it possible to count and react to the magnetic field. Most often used to count the rotational speeds of the engine or wheels of vehicles for the ABS system. The 3144 Switching Hall Sensor Motor Speed Measurement Module can be used for motor speed measurement, position detection, etc. Magnetic Speed Counter Sensor Module for Arduino Smart Car. Technical data
- Power supply: 4.5 - 24V
- Output current: 25mA
- Current consumption: 4 - 8mA
- Response time: from 0.04 to 2 uS
- Signal output type: digital: GND / VCC
- Output: without magnetic field: 4.6V, with magnetic field: 0.1V
- Sensor type: switching
- Module dimensions: 19mm x 15mm x 3mm
- Weight: 2g

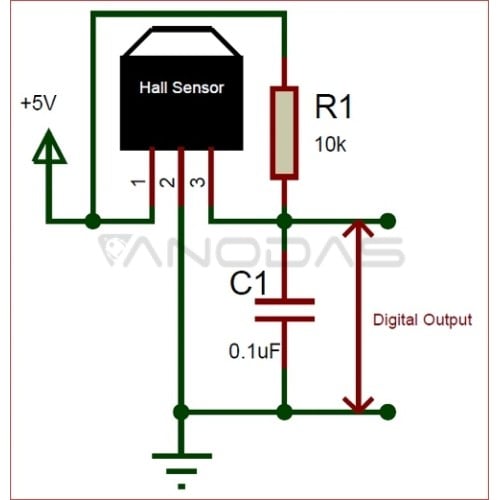

In the circuit diagram above, resistor R1 (10K) is used as a pull-up resistor and capacitor C1 (0.1uF) is used to filter any noise that may appear at the output.
Included- Hall sensor module - KY-003 - 3144 hall sensor - 3pin - 1 pc
