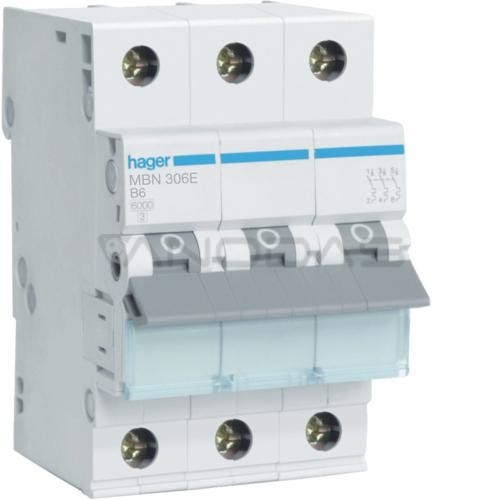

HAGER MBN306E B circuit breaker 6 3 poles

Brand: HAGER
Product Code: MX-HAGER-MBN306E
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-20
24.90€
Ex Tax: 20.58€

Qty

Width [mm]: 52.5 mm
Height: 83 mm
Frequency: 50/60 Hz
Operating temperature °C: -25 to 60
Rated current [A]: 6
Total power loss for rated current: 3.8 W
Storage temperature: -25 to 80 °C
Depth: 70 mm
Tripping characteristics: B
Rated short-circuit breaking capacity [kA]: 6
Number of poles: 3
Rated operating voltage Ue (AC): 230/400
Rated insulation voltage: 500 V
Electrical strength (number of cycles): 4000
Mechanical strength (number of cycles): 20,000
