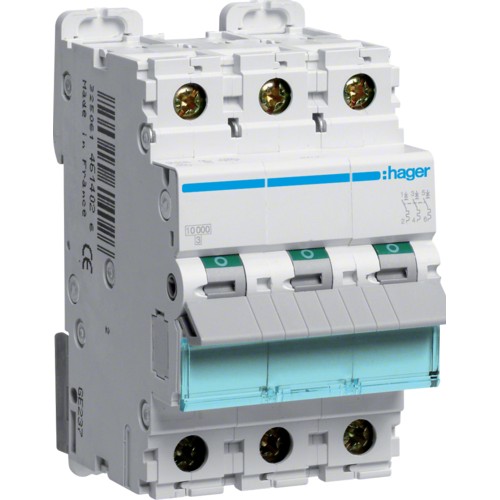

HAGER circuit breaker 10 kA C 3-GEAR NCN310A

Brand: HAGER
Product Code: MX-HAGER-NCN310
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-16
35.80€
Ex Tax: 29.59€

Qty

Width [mm]: 52.5 mm
Height: 83 mm
Frequency: 50/60 Hz
Operating temperature °C: -25 to 60
Rated current [A]: 10
Total power loss for rated current: 7.8 W
Storage temperature: -25 to 80 °C
Depth: 70 mm
Tripping characteristics: C
Rated short-circuit breaking capacity [kA]: 10 kA
Number of poles: 3
Rated operating voltage Ue (AC): 200/300
Rated insulation voltage: 500 V
Electrical strength (number of cycles): 4000
Mechanical strength (number of cycles): 20,000
