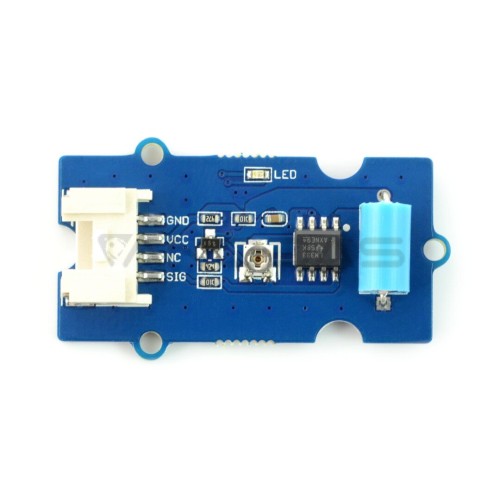

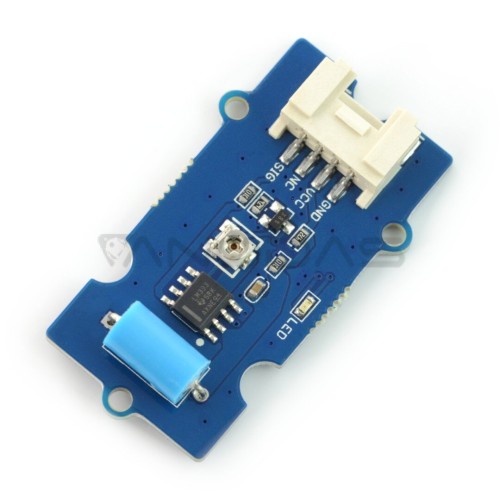

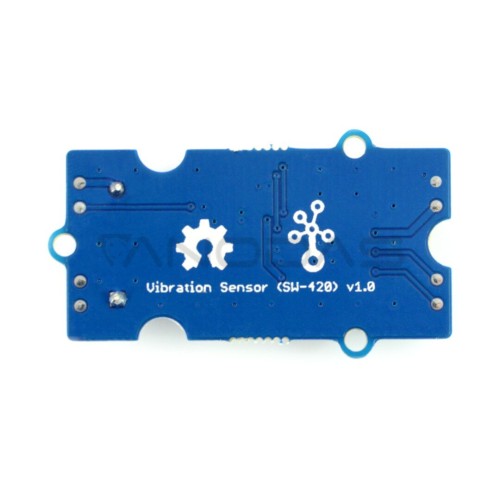

Grove, SW-420 vibration sensor

Brand: Seeedstudio
Product Code: AN-12917
Availability: Temporarily Out Of Stock
8.40€
Ex Tax: 6.94€

Module with high sensitivity vibration sensor from Grove series. When the sensor is at rest, the output of the output transmitted is at a constant high signal (high) and the time of detection of the oscillations is changed to the low (low). Sensitivity can be adjusted using the potentiometer located on the board. The module is fully compatible with Arduino.

Specification:

  • Model: SW-420
  • Supply voltage: 3.3 V / 5 V
  • Interface: digital
  • Dimensions: 40 x 20 x 7 mm
  • Weight: 4 g

Useful links:
Manufacturer website
Manual
