Grove Starter Kit for Seeed Xiao - Seeedstudio 110010044

Brand: Seeedstudio
Product Code: AN-21851
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-15
65.30€
Ex Tax: 53.97€

Qty

Grove Starter Kit for Seeed Xiao is a set of Grove modules with an overlay designed to work with the Seeed Xiao module. The manufacturer has also prepared a series of guides to help you get started with the module and later create your own projects. The set includes elements such as the Grove overlay, WS2813 LED strip, a set of LEDs, an encoder module, IR receiver, light sensor, PIR motion sensor, accelerometer, temperature and humidity sensor, servo and connection cables. Seeed Xiao boards are available with various microcontrollers: RP2040, SAMD21, nRF52840 and ESP32, so you can choose the right module for your needs. The series of guides has been divided into three types of projects: Practice, Advanced and Self-developed, which were written in a very detailed way. With this kit, you can get basic environmental data such as light intensity, temperature, humidity and infrared. A 3-axis accelerometer and a mini PIR motion sensor will allow you to detect the movement of the object.

Main features:
  • It extends the capabilities of the Xiao series board. The expansion module for Xiao has various data transmission interfaces and functional peripherals
  • It supports a wide range of applications. 9 Grove modules allow you to study environmental conditions, detect motion and mechanically control motion
  • Installation of additional control elements. 20-key mini controller, a set of green, red, blue, white LEDs
  • Ready courses for Seeed Xiao. The manufacturer has prepared a series of courses/guides for beginners to familiarize themselves with the development boards, and the next ones to move on to implementing their own projects

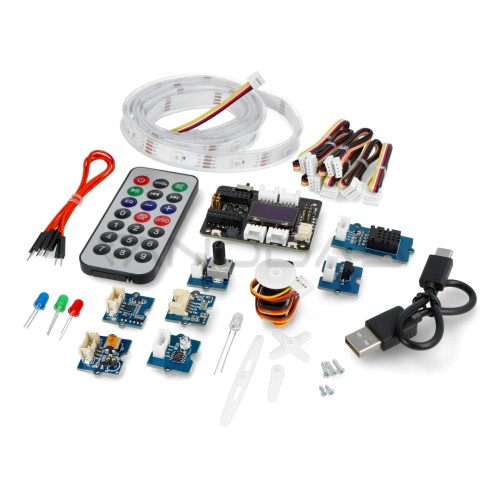

Set includes:
  • Seeeduino Xiao Expansion Board
  • Grove - IR receiver 38 kHz 940 nm
  • Grove - 10 kΩ linear rotary potentiometer - upper connector
  • Grove - LM358 ambient light intensity sensor v1.2
  • Grove - mini PIR motion sensor
  • Grove - WS2813 RGB LED - waterproof - 60 LED/m - 1 m
  • Grove - temperature and humidity sensor v2.0 - DHT20
  • USB Type-C cable
  • A set of LEDs with a module
  • Grove - 3-axis LIS3DHTR accelerometer - I2C / SPI / ADC
  • IR remote control 21 buttons
  • Grove cable kit
  • A set of male-male hoses
  • Grove - ES08A servo - micro
