Grove, Speech Recognizer v1.0, ISD9160

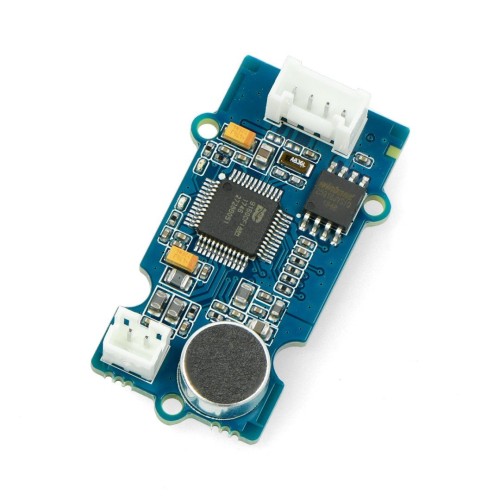

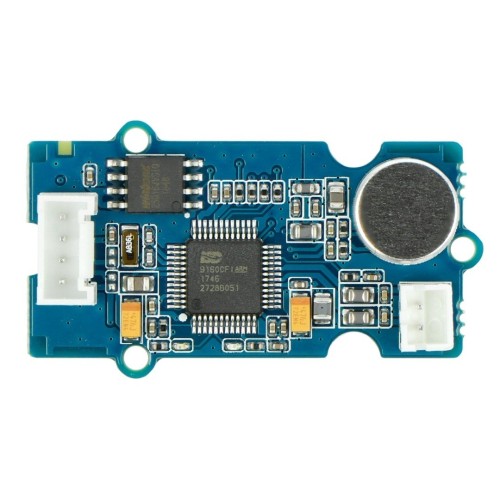

Voice recognition module with Nuvoton ISD9160 based on Cortex M0, which is responsible for speech recognition. A built-in omnidirectional microphone that will pick up sound from all sides. There is also a 2-pin connector for the loudspeaker, which can respond to commands when properly programmed. The module has 22 English language commands uploaded. The board is equipped with a Grove connector, for easy connection to the Base Shield cover. It communicates via the SPI interface. The module is powered from 3 V to 5 V.

Specification:

• Supply voltage: 3 V to 5 V
• Power consumption during operation:
• from 25 mA to 80 mA - 3.3 V
• from 25 mA to 130 mA - 5 V
• Layout: ISD9160
• Processor: Cortex-M0 50 MHz
• Flash memory: 2 MB
• Microphone sensitivity: -43 dB to -37 dB
• SNR microphone: 58 dB
• Speaker power: 1 W for 5 V
• Operating temperature: 0 °C to 85 °C
• Dimensions: 40 x 20 mm
• Weight: 5 g

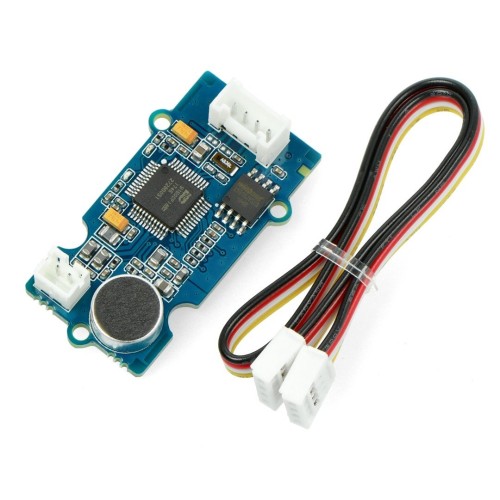

Set includes:

• Voice recognition module ISD9160
• Grove cable
