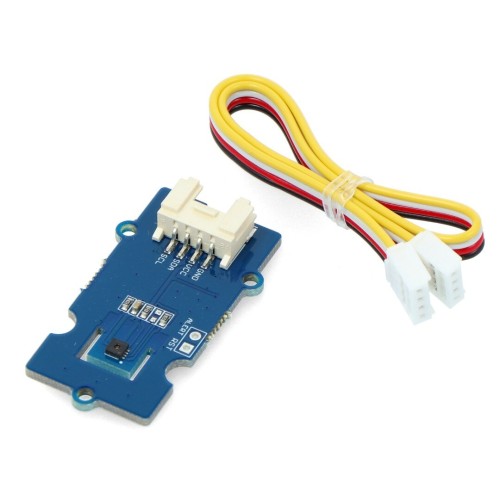

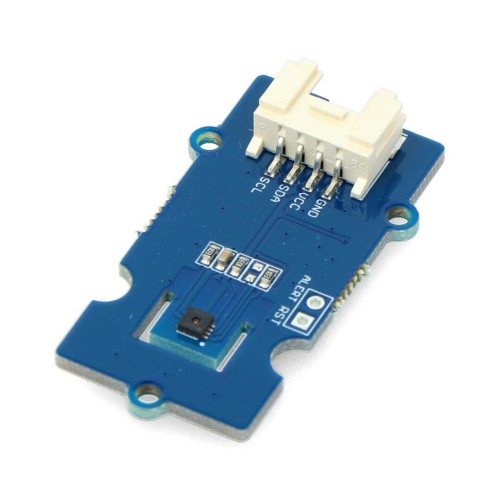

Grove, SHT35, temperature and humidity sensor, I2C

Brand: Seeedstudio
Product Code: AN-15182
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-25
19.60€
Ex Tax: 16.20€

Qty

Highly accurate SHT35 temperature and humidity sensor. It measures temperature from -40 °C to 125 °C with an accuracy of 0.1 °C and humidity from 0% to 100% RH with an accuracy of 1.5% RH. It communicates through an I2C interface with address selection, communication speed is up to 1 MHz. It works with a voltage of 3.3 V and 5 V.

Specification:

  • Power supply voltage: 3.3 V or 5 V
  • Temperature measurement:
    • Range: -40 °C to 125 °C
    • Resolution: 0.01 °C
    • Accuracy: 0.1 °C
  • Measuring humidity:
    • Range: 0% RH to 100% RH
    • Resolution: 0.01% RH
    • Accuracy: 1.5% RH
  • Interface: I2C
  • I2C address: 0x45 (default) / 0x44 (optional)
  • Connector: Grove
  • Dimensions: 40 x 20 x 6 mm
  • Weight: 3,1 g

Useful links:
Manufacturer website
Manual
