Grove RGB LED žiedas WS2813 x24 šviesos diodai 35mm Seeedstudio 104020168

Brand: Seeedstudio
Product Code: AN-15552
Availability: Temporarily Out Of Stock
15.90€
Ex Tax: 13.14€

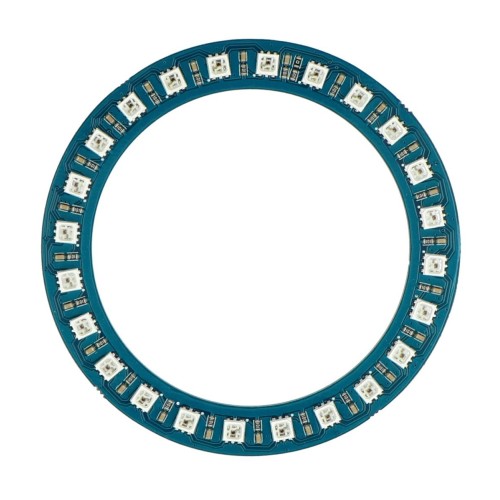

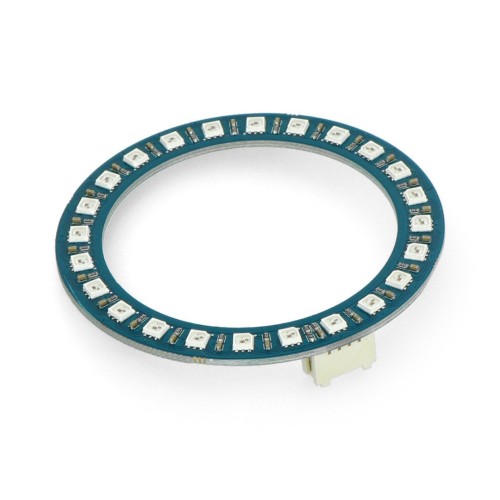

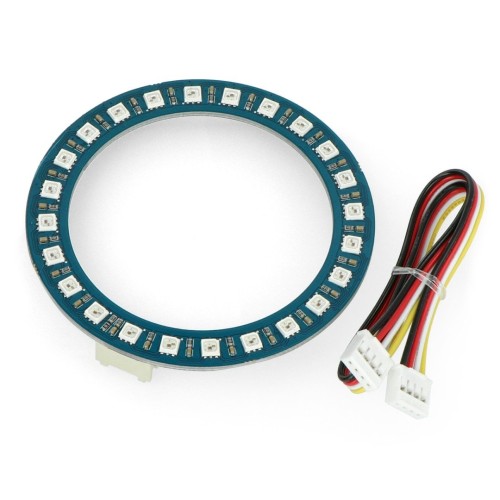

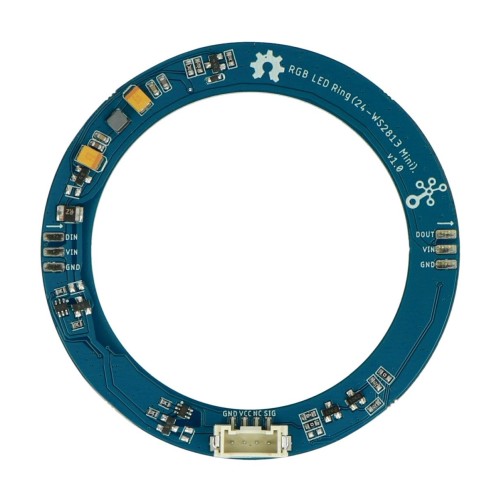

The module in the form of a ring with a diameter of 35mm equipped with 24 RGB LEDs with the WS2813 controller. Each of the diodes can be individually addressed. The ring has a Grove connector, which makes it easy to connect the module with a Base Shield cap for Arduino.

Main features:

  • 256 grey levels, 256x256x256 = 16777216 displayed colors
  • The built-in control system in 3535 components
  • Supports 3.3 V and 5 V power supply

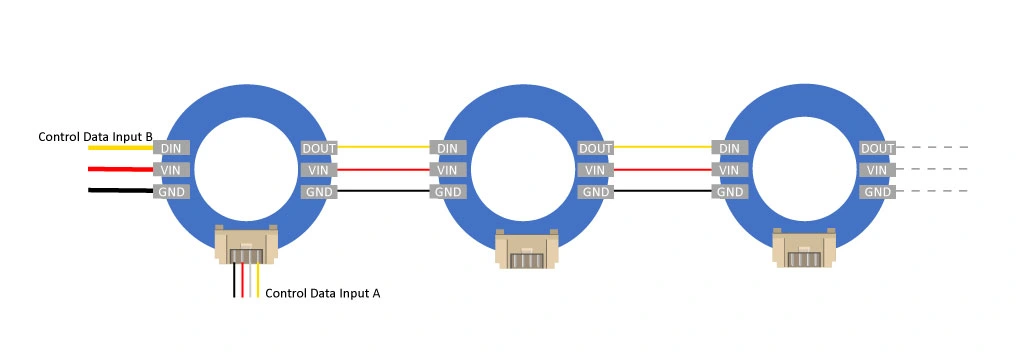

  • Wires with two signals, interrupting one diode does not interrupt the entire module

Specification:

  • Power supply voltage: 3.3V or 5V
  • Number of diodes: 24
  • Type of diodes: WS2813
  • Idle current consumption: 0.7 mA / LED
  • Average power consumption: 16 mA / LED
  • Frequency of refreshment: 2 kHz
  • Reset time: up to 280 μs
  • Number of displayed colors: 16777216
  • Operating temperature: -25°C to 85°C
  • Storage temperature: -40°C to 105°C
  • Dimensions: diameter 35mm

Useful links:
Manufacturer website
Manual
