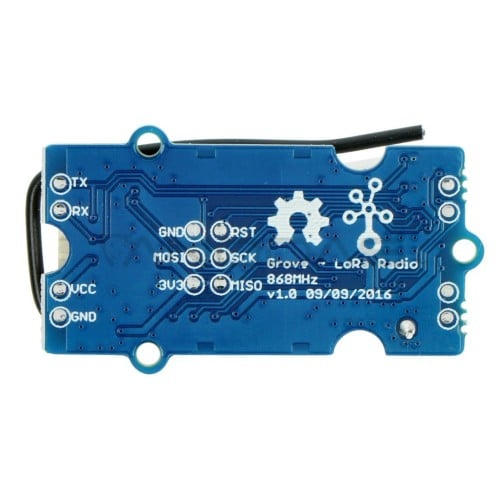

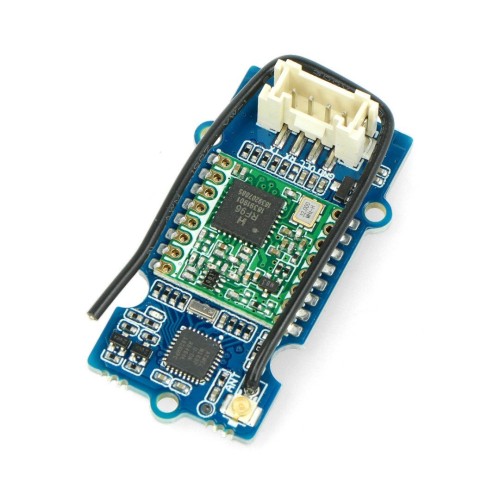

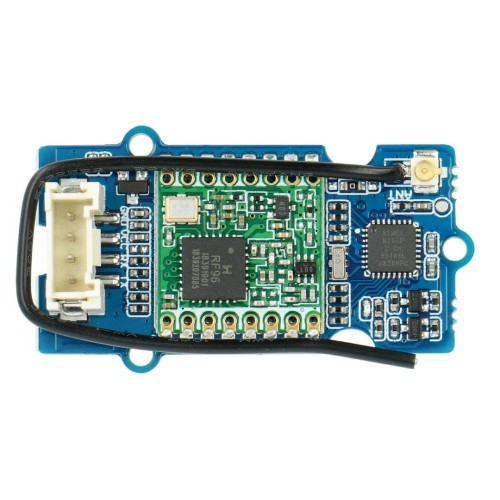

Grove, LoRa Radio module 868MHz

868MHz RFM95 long-range radio module (Long Range: LoRa). Enables data transmission at distances up to approx. 800 m, using the cable as an antenna. The module is equipped with u.FL connector so it is possible to connect an additional antenna. The set includes a cable with a Grove connector adapted to Seeedstudio Base Shield v2.0. The system operates with a voltage of 3.3 V and 5 V.

Specification:

• Communication system: RFM95 based on SX1276 LoRa
• Control system: ATmega168
• Operating voltage: 3.3 V to 5 V
• Power consumption:
• Transmission: 28 mA
• Standby: 8.4 mA
• Acceptance: 20 mA
• Interface: UART
• Built-in antenna + u.FL connector
• Operating frequency: 868 MHz
• Operating temperature: -20 °C to 70 °C
• Output power: 100 mW (20 dBm)

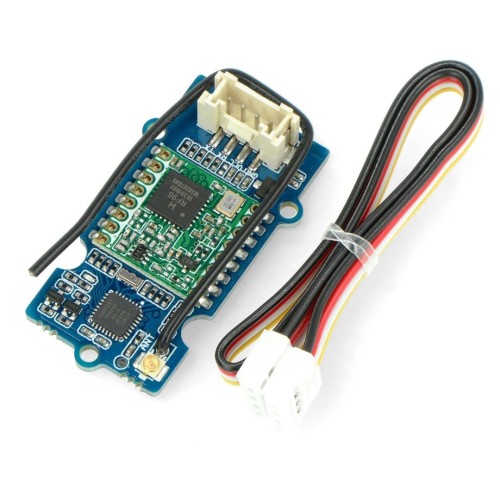

• Connecting cable included
• Dimensions: 40 x 20 mm
