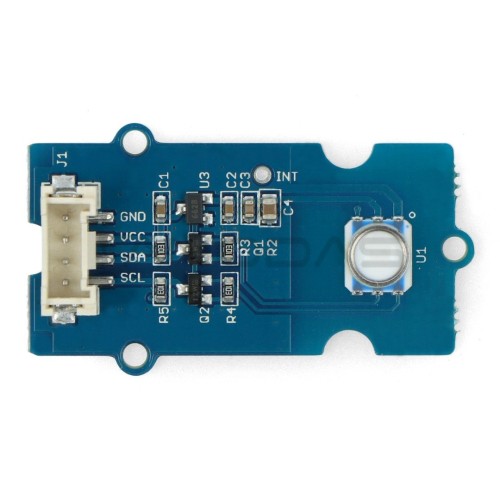

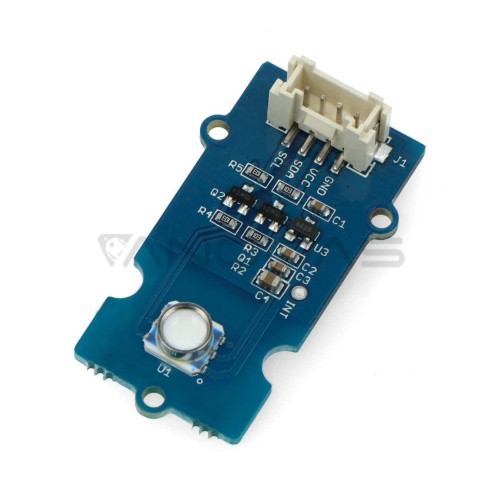

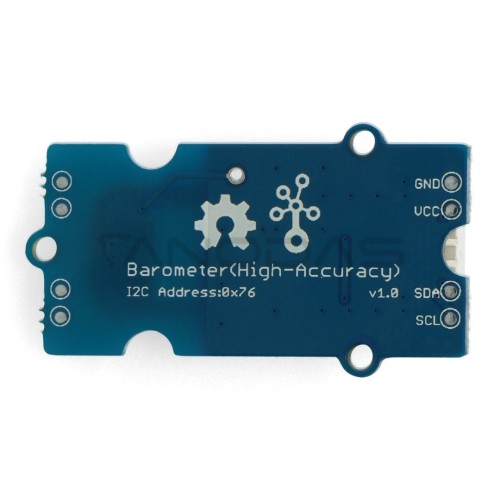

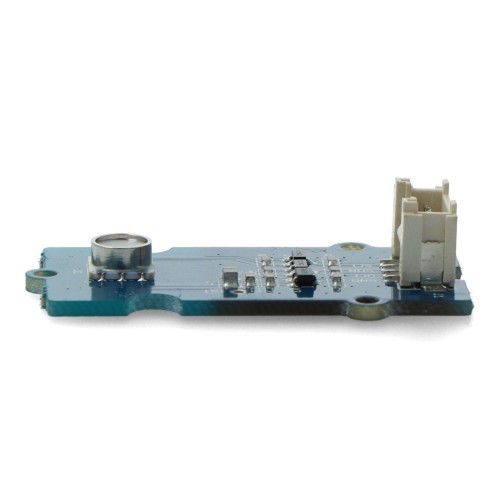

Grove, HP206C Pressure sensor I2C

Brand: Seeedstudio
Product Code: AN-14985
Availability: 4-6 business days
Planned delivery date after ordering: 2025-01-31
25.60€
Ex Tax: 21.16€

Qty

High-quality sensor equipped with HP206C system for measuring atmospheric pressure, Grove brand. It has a wide measuring range from 300 hPa to 1200 hPa. It is fully compatible with Arduino, it is connected to it by means of a digital I2C interface. The sensor is characterized by low power consumption, it additionally includes temperature measurement and altimeter. The system tolerates input voltage from 1,8 V to 3,6 V. However, with the external circuit added, this module allows for 3.3 V and 5 V.

Main features:

  • The sensor is calibrated at the factory
  • I2C digital interface
  • Programmable events
  • Wide range of measurement value
  • Flexible supply voltage range
  • Ultra-low power consumption
  • Includes temperature measurement
  • Includes altimeter

Set includes:

  • Pressure sensor
  • Female to female, 4-pin, 20 cm long cable for connection to Base Shield v2.0
