Grove Electromagnet 5V 1kgf

Brand: Seeedstudio
Product Code: AN-11307
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-16
17.80€
Ex Tax: 14.71€

Qty

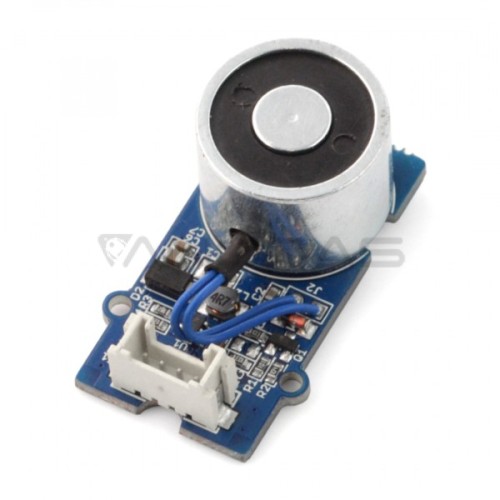

Module from the Grove series equipped with holding electromagnet. It holds a weight of 1 kg in standard earth acceleration of 9.8 m/s2. Body diameter is 20 mm and its height is 15 mm, for installing the magnet to the board, used is the hole with the M3 thread. It has digital output, making it compatible with most of the commissioning modules, including Raspberry Pi and Arduino.

Technical data:

  • Supply voltage: 5 V
  • Current:
  •         Operation: 400 mA
  •         Sleep mode: 200 uA
  • Load: 1 kgf (holding a 1 kg weight for the earth acceleration of 9.8 m/S2)
  • Working temperature: 10 - 30°C
  • Operating humidity: 10 - 90 %
  • Dimensions: 89 x 140 x 18.8 mm
  • Weight: 34 g
