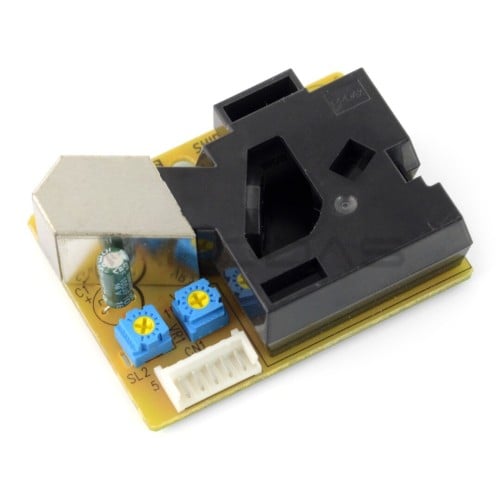

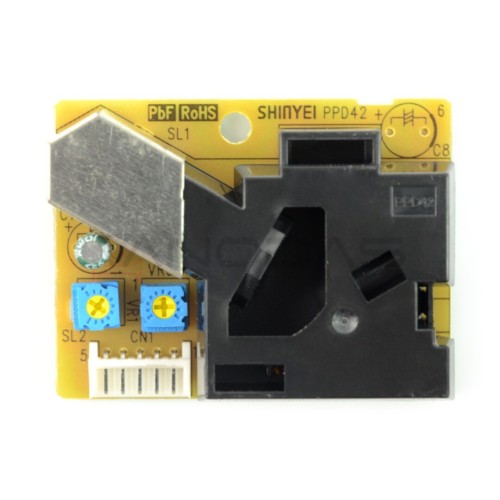

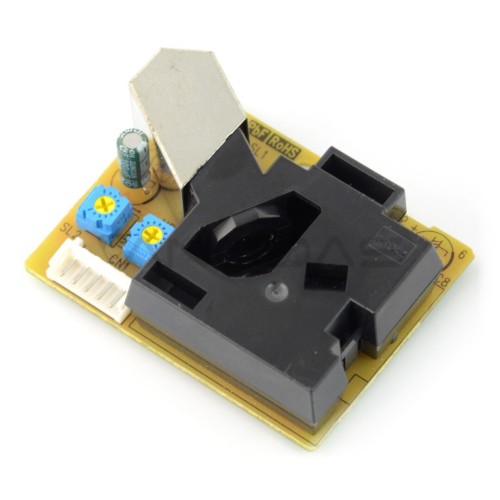

Grove, dust / purity air sensor PM2.5 PPD42NS, 5V PWM

Brand: Seeedstudio
Product Code: AN-13331
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
15.40€
Ex Tax: 12.73€

Qty

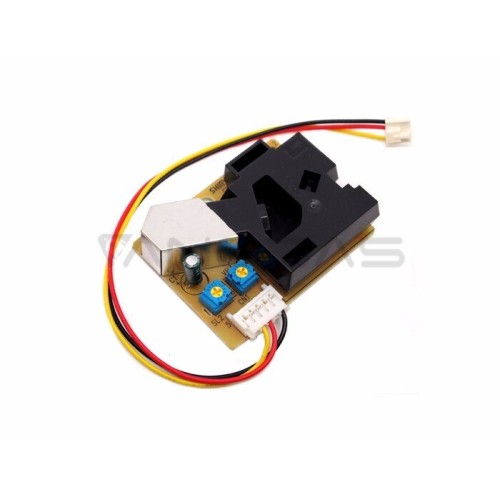

The sensor of dust allows you to monitor the purity of the air. It is equipped with a sensor that can detect PM2.5 particles with a diameter above 1 μm, such as cigarette smoke. The system is powered with a voltage from 4.75 V to 5.75 V, it communicates using a PWM signal. The set has a cable with the Grove end.

Specification:

  • Supply voltage: 4.75 V to 5.75 V
  • Current consumption: 90 mA
  • Sensitivity: 1 µm
  • Detection range:
    • from 0 to 28,000 pcs/liters
    • from 0 to 8000 pcs/0,01 cf
  • Stabilization time: 1 min after turning on
  • Communication: frequency PWM signal
  • Operating temperature: 0 °C to 45 °C
  • Operating humidity: up to 95 % RH
  • Board sizes: 59 x 45 x 22 mm
  • Weight: 24 g
