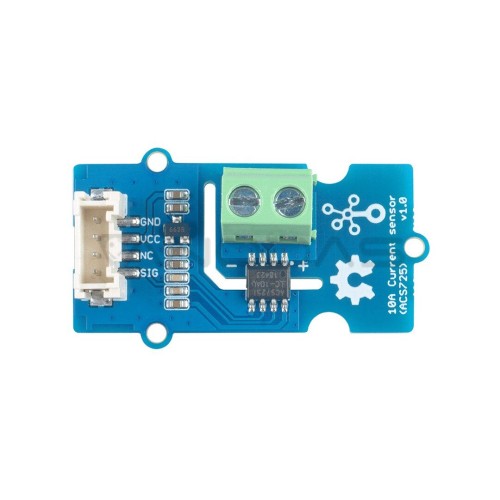

Grove, current sensor ASC725, 10A

Brand: Seeedstudio
Product Code: AN-14421
Availability: Temporarily Out Of Stock
16.50€
Ex Tax: 13.64€

Popular current sensor ASC725 based on the Hall effect is widely used in industry, vehicle systems, communication systems. It is a viable solution and it's fairly accurate. Its typical applications include system load management, overload protection. This model was manufactured by Seeed Studio and is equipped with a standard Grove interface greatly facilitating the use of the sensor in cooperation with Arduino and Raspberry Pi for Grove Base Hat. The connection of electricity to measure is through a simple screw clamp. The sensor, to operate, has to have a power supply of 3.3 V or 5 V and it can measure a current of up to 10 A at a voltage of up to 400 V.

Specification:

  • Supply voltage: 3.3 V / 5 V
  • Working voltage: <400 V
  • The detection range of current: from 0 A to 10 A
  • Basic sensitivity: 264 mV / A
  • Output interface: analog
  • Input interface: screw clamp
  • Ambient operating temperature: -40 °C to 150 °C
  • Storage temperature: -65 °C to 165 °C
