Grove, Circular LED

Brand: Seeedstudio
Product Code: AN-14989
Availability: Temporarily Out Of Stock
20.70€
Ex Tax: 17.11€

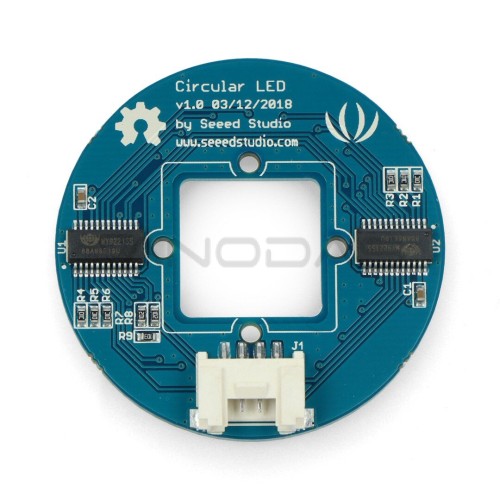

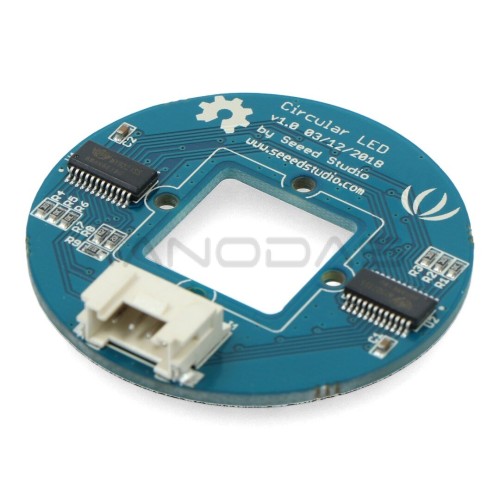

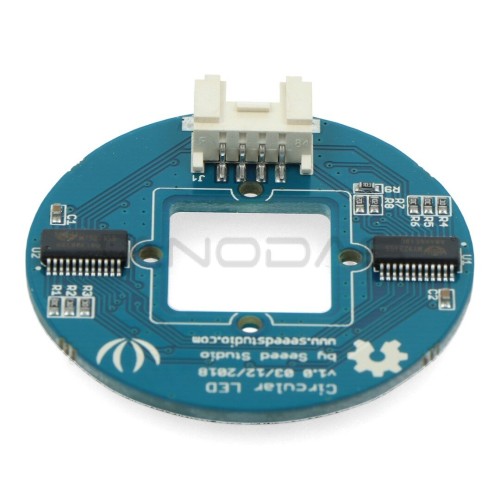

The original Grove ring has 24 controlled LEDs. In the middle of the ring, there is a square hole measuring 1.6 cm x 1. 6 cm. The ring can thus be placed on the GroveEncoder and made to rotate. It connects via a digital interface to other devices.

Specification:

  • Supply voltage: 4.5 V to 5.5 V
  • Energy consumption: 5.5 mA (per LED)
  • Interface: digital
  • Dimensions: ∅ 45 mm
  • Weight: 12 g

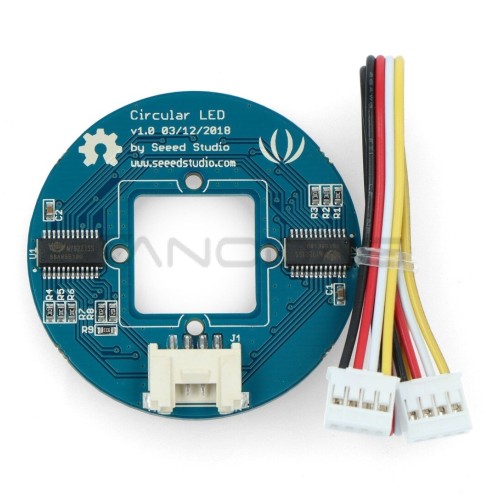

Set includes:

  • Ring of the LED
  • Female to female, 4-pin cable, 20 cm long

Useful links:
Manufacturer website
Manual
