Grove AC-Voltage sensor - RMS AC voltage sensor - MCP6002 - Seeedstudio 101991032
Brand: Seeedstudio
Product Code: AN-22416
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-02
Product Code: AN-22416
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-02
Ex Tax: 5.70€

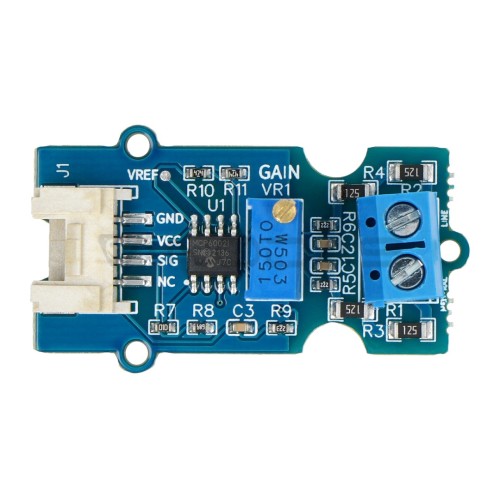

The sensor is equipped with the MCP6002 system and is designed to measure the RMS value of AC voltage. It has adjustable gain for various voltage inputs from 120 V to 240 V AC, and the module output has an analog signal, thanks to which the board is compatible with development boards such as Arduino, ESP32 or Wio Terminal. Thanks to the high measurement precision, it can be used to create smart energy meters.
Main features:
- High adaptability for various voltage inputs 120 V / 240 V AC (or lower)
- Thanks to the use of an analog output, the module can be used with many different development boards such as Arduino, ESP32 or Wio Terminal
- Accurate measurement of voltage changes generated by high-power loads
- High-quality MCP6002 integrated circuit with analog output
- Easy to use with Grove connector (plug and play)
- Adjustable gain and manual calibration for custom adjustments
Specification:
- Type: RMS voltage sensor
- Input voltage: 3.3 V to 5 V
- Output type: analog signal
- Built-in chip: MCP6002 (OPAMP)
- Adjustable Gain: Yes, from 120 V to 240 V AC

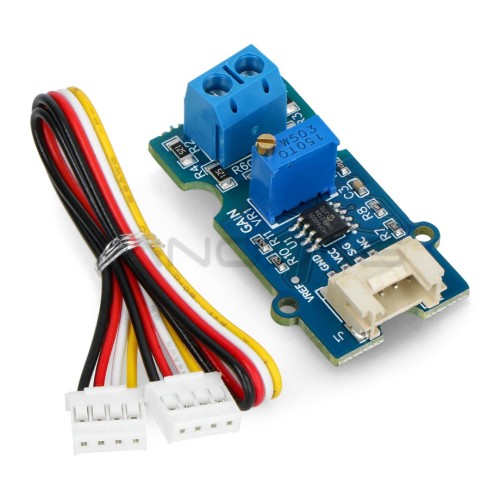

Set includes:
- Grove AC-Voltage sensor - RMS AC voltage sensor - MCP6002 - 1 piece
- Connection cable with Grove connector - 1 piece
