Grove, 4-pin screw connection

Brand: Seeedstudio
Product Code: AN-11348
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
3.10€
Ex Tax: 2.56€

Qty

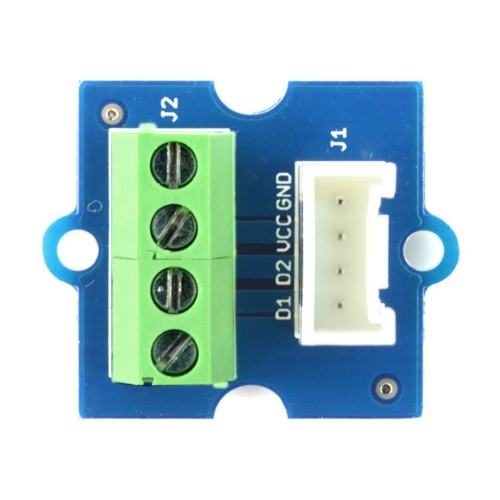

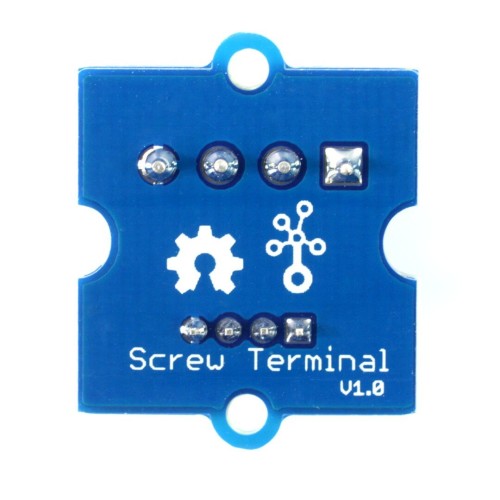

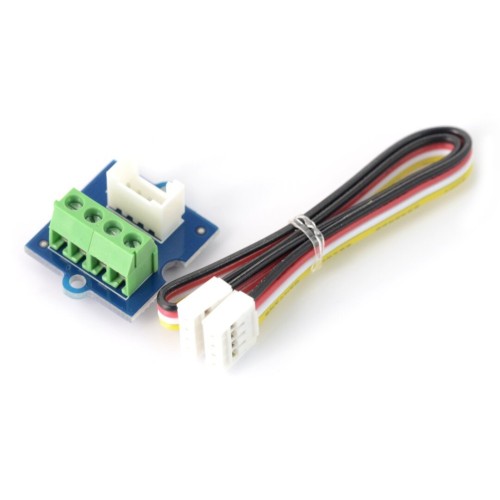

Module from the Grove series with a 4-pin screw connection of 3.5 mm. It is designed to connect the cables with a diameter of 0.2 mm to 0.8 mm for the microcontroller. It has 4 ports: VCC, GND, and two other ports. It is used as a converter of the size of cables. The kit includes a cable adapted to Seeedstudio Base Shield v2.0.

Specification:

  • 4-pin screw connection: 3.5 mm pitch
  • Designed for cables from 20 AWG to 30 AWG: from 0.2 mm to 0.8 mm diameter
  • Maximum current: 6 A
  • Maximum voltage: 125 V
  • 4-pin Grove interface
  • Module dimensions: 20 x 20 mm
  • Weight: 4 g

Useful links:
Manual
