Grove, 12-bit Magnetic Rotary Position Sensor / Encoder (AS5600)

Brand: Seeedstudio
Product Code: AN-15546
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-11
10.70€
Ex Tax: 8.84€

Qty

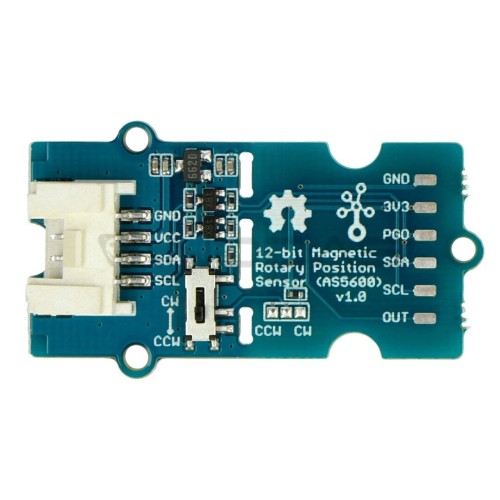

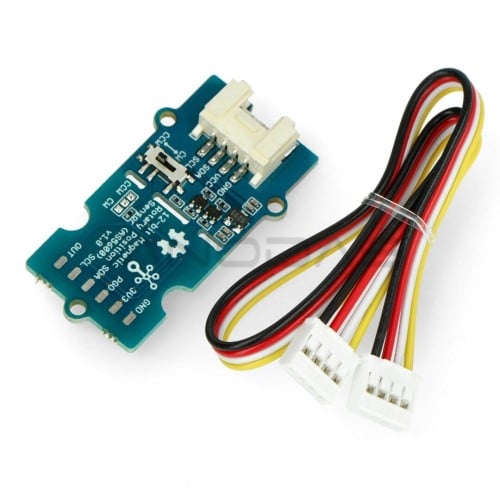

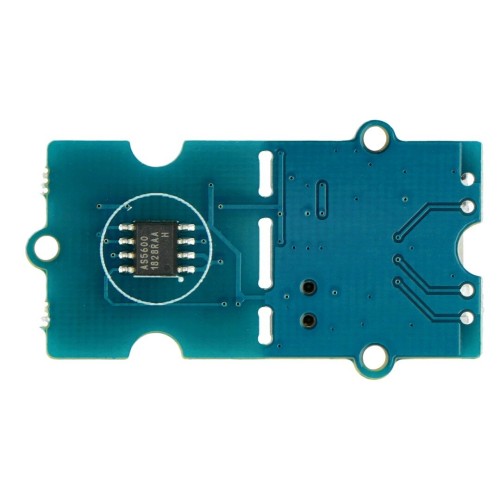

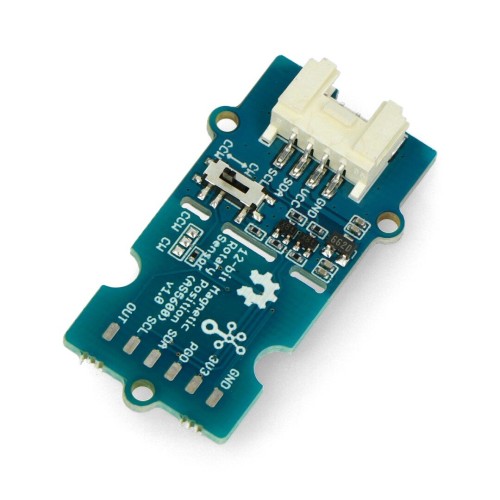

The module is equipped with an AS5600 magnetic encoder with a 12-bit resolution. It has greater accuracy, is non-contact, and has no angle limitation, unlike a traditional potentiometer. The board has a Grove connector for a simple connection to the BaseShield cover. It works with a voltage of 3.3 V or 5 V.

Main features:

  • Non-contact, no angle of rotation limitation
  • 12-bit resolution, 4096 items per revolution
  • Grove I2C, PWM / analog output
  • The maximum programmable angle from 18° to 360°

Specification:

  • Power supply voltage: 3.3 V or 5 V
  • Input current: up to 100 mA
  • Angle range: maximum programmable angle range from 18° to 360°
  • Output: analogue / PWM
  • Interface: I2C - default address 0x36
  • Output resolution: 12-bit DAC
  • Operating temperature: -40 °C to 125 °C
  • Dimensions: 40 x 20 mm
