Grove, 10kΩ linear sliding potentiometer

Brand: Seeedstudio
Product Code: AN-04436
Availability: 4-6 business days
Planned delivery date after ordering: 2025-01-28
9.80€
Ex Tax: 8.10€

Qty

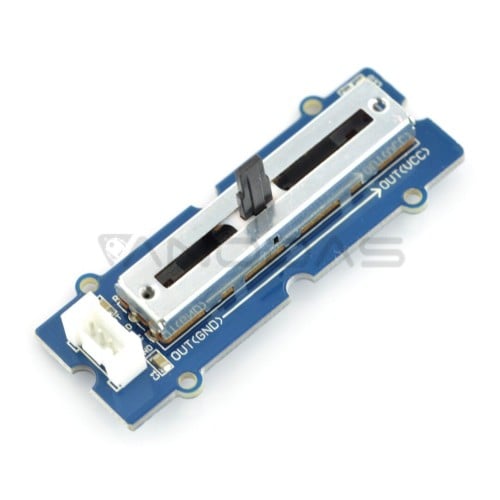

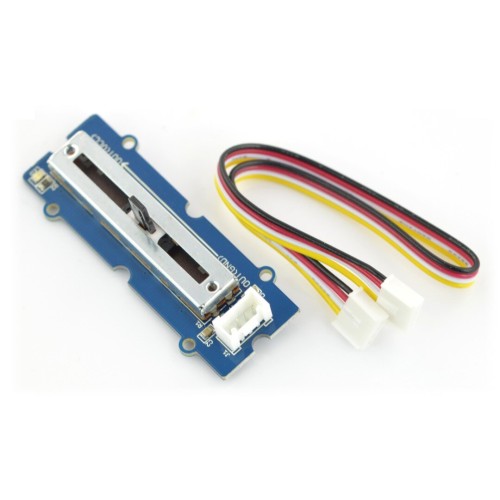

Sliding linear potentiometer with a resistance of 10kΩ. It has a 4-pin Grove connector. The kit includes a cable adapted to Seeedstudio Base Shield v2.0.

Specification:

  • Resistance: 10kΩ
  • Sliding shaft's length: 3 cm
  • Supported voltage: 3.3 V to 30 V
  • Linear characteristic
  • Equipped with 4-pin Grove, raster 2 mm
  • Dimensions: 24 x 60 mm
