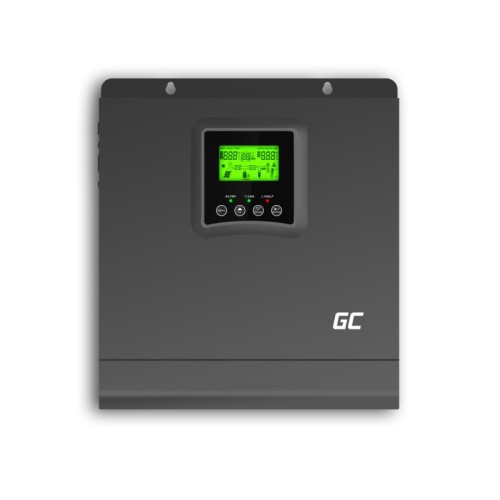

Green Cell Solar Inverter Off Grid converter with MPPT Solar Charger 24VDC 230VAC 2000VA/2000W Pure Sine Wave

Brand: Green Cell
Product Code: INVSOL03
Availability: Temporarily Out Of Stock
317.80€
Ex Tax: 262.64€

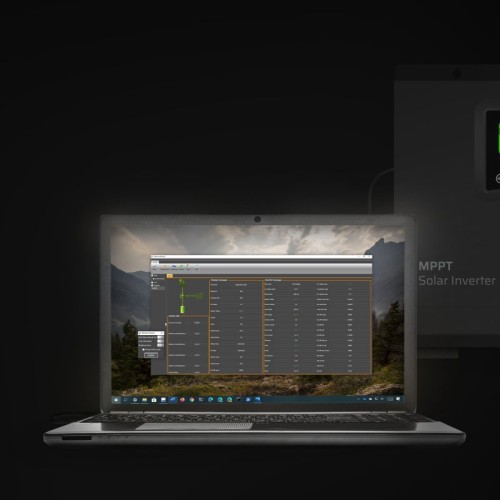

Green Cell solar inverter combines three devices: MPPT controller, inverter and battery charger , thanks to which it is able to provide continuous energy to your devices. The built-in MPPT controller allows you to convert the energy obtained from solar panels into electricity with appropriate parameters needed to charge the batteries and power devices in your home. Intuitive and easy to use, the software provides comprehensive inverter management , providing a real-time view of all relevant charging parameters.

Specifications:

  • Battery voltage: 24V
  • Effectiveness: 98%
  • Dimensions: 272 x 355 x 100 mm
  • Weight: 8.5kg
  • Output Voltage: 230V AC
  • Output frequency: 50Hz or 60Hz (automatic detection)
  • Usable power (continuous): 2000W
  • Sine wave type: Pure sine wave
  • Instantaneous power (impulsive): 4000W
  • No-load power consumption: 2W
  • Maximum charging current: 80A
  • Maximum voltage: 145VDC
  • Product code: INVSOL03
  • Maximum PV Voltage (VOC): 145VDC
  • Maximum PV power: 1500W
  • Efficiency of the inverter: 90% - 93%
  • AC Voltage Control: 220VAC - 240VAC (possibility of setting)
  • Charging voltage: 27.4VDC
  • PV voltage range for MPPT: 30 - 120VDC
  • Maximum MPPT output current: 60A
