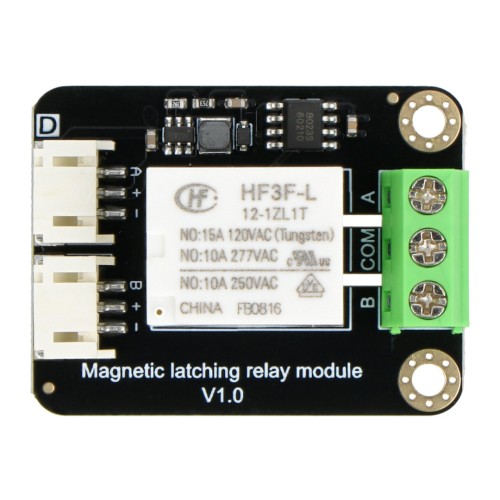

Gravity - snap-on 10A/250VAC magnetic relay - for Arduino and ESP32 - DFRobot DFR0996
Brand: Dfrobot
Product Code: AN-22838
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-02
Product Code: AN-22838
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-02
Ex Tax: 9.83€
Magnetic latching relay 10 A / 250 V AC from DFRobot. Compared to other relays, it is distinguished by the fact that it needs two digital pulse signals to switch the ON / OFF state. It is compatible with most popular microcontrollers, such as ESP32, Arduino or Raspberry Pi.
Main features:
- Low power consumption ranging from 2.6 mW to 3.65 mW
- Quiet and interference-free operation
- Trigger pulse width equal to 2 ms
- 3.3 V and 5 V voltage supported
- Compatible with Arduino / ESP32 / Raspberry Pi / LattePanda
Specification:
- Module type: relay
- Relay Type: Magnetic Relay, Latching Relay
- Supply voltage: 3.3 V to 5 V DC
- Trigger pulse width: 2 ms
- Static current: 0.73 mA to 0.8 mA
- Coil operating current: 137 mA / 3.3 V, 93 mA / 5 V
- Contact resistance: ≤ 100 mΩ (1 A / 6 V DC)
- Contact material: AgSnO2
- Contact load: 10 A / 36 V AC, 15 A / 36 V AC
- Maximum switching voltage: 36 V AC / 30 V DC
- Maximum switching current: 10 A
- Maximum switching power: 36 VA / 300 W
- Coil-rated power: 0.4 W
- Relay operating time (at rated voltage): ≤ 8 ms
- Relay reset time (at rated voltage): ≤ 5 ms
- Module dimensions: 42 x 32 mm
Set includes:
- Gravity - snap-on 10A/250VAC magnetic relay - for Arduino and ESP32 - DFRobot DFR0996 - 1 piece
- Connection cable with Gravity connector - 3-pin - 1 piece
