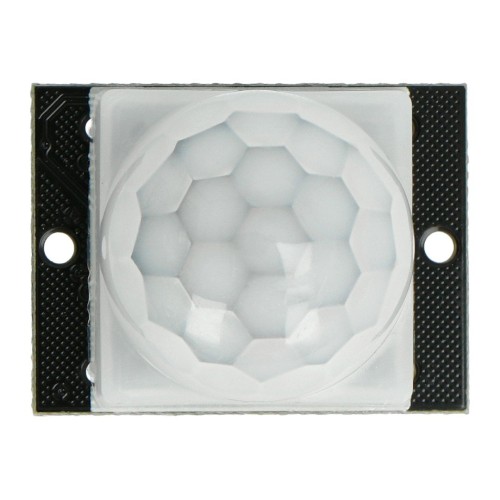

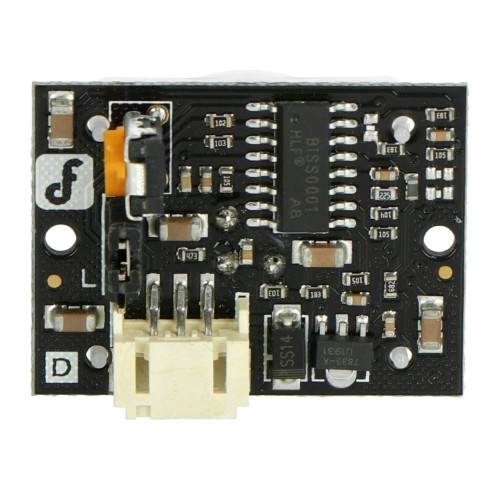

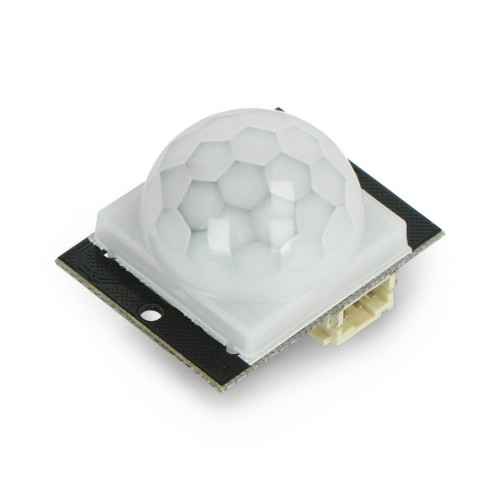

Gravity: Digital Infrared Motion Sensor

Brand: Dfrobot
Product Code: AN-10173
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
7.90€
Ex Tax: 6.53€

Qty

Sensor, type PIR, can detect movement. Used to detect objects in the premises, alarm and lighting systems. The sensor is supplied with a voltage from 3.3 to 5 V. When connecting it, it is necessary to wait 1-2 seconds until the sensor will do a snapshot of the room. If, after this time, something will move in the area of the sensor, the alarm pin will be low. For detection, the sensor uses IR, which is warm. The sensor may be used to control lighting, if someone is in the range of the sensor, the light will be turned on, if no one will, the light will be off. Connecting the sensor is easier thanks to the Gravity connector.

Specification:

  • Sensor type: digital
  • Supply voltage: 3 V to 5 V
  • Current: 50 uA
  • Operating temperature: 0 ℃ to 70 ℃
  • The output level (high): 4 V
  • Output level (low): 0.4 V
  • Detection angle: 110°
  • Detection distance: 7 m
  • Dimensions: 38 x 36 mm
  • Weight: 25 g

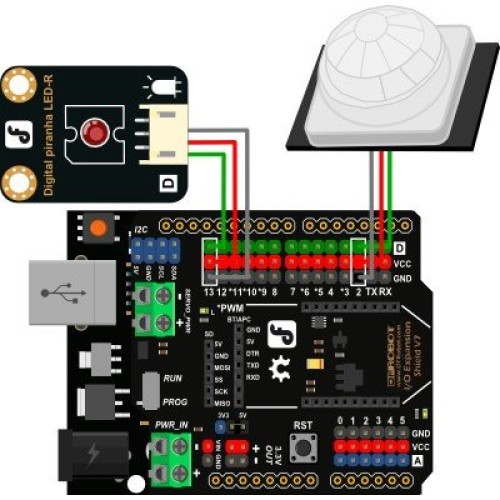

  • Connector: Gravity - cable included
